Dynoman Performance Custom Piston Kits
Also available: JE Pistons | Wiseco Pistons
Ring Sets

WE MAKE CUSTOM PISTONS: If you don't see what you're looking for below, please email us!
Send your make, model, year, plus desired bore size and compression ration, and what you will be doing with the bike (dragrace, roadrace, hot street, sidecar, naturally aspirated or blown, etc). This will help us to design the perfect piston for you.


CUSTOM PISTON INFORMATION:
- CUSTOM OPTIONS FOR DP PISTONS
- How to make a DOME MOLD
-
About Cylinder Bottom Taper
- Installation Information for DP kits

HONDA KAWASAKI SUZUKI YAMAHA
    CB750 SOHC
   1969-76 all, 1977-78 K
  -   1026cc
  -   1000-
  -   890-915cc
  -   836cc

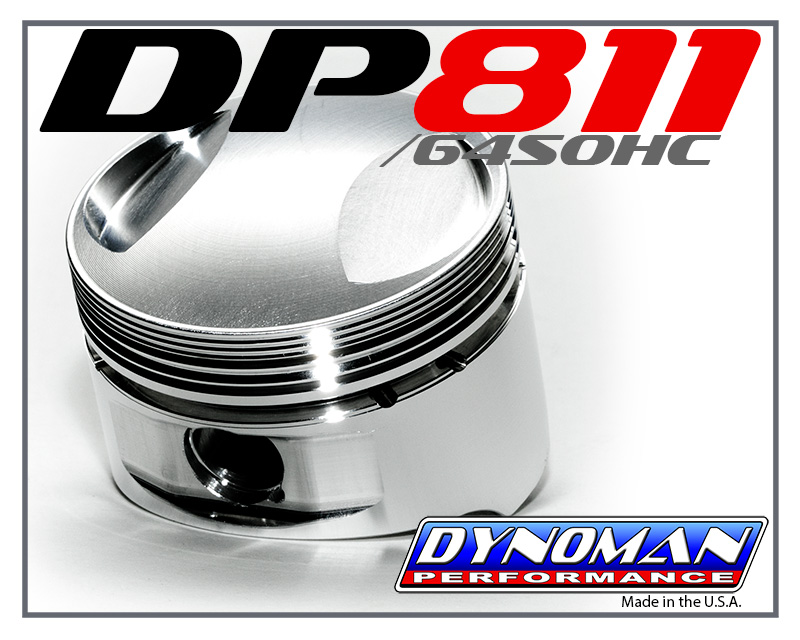

-     811cc

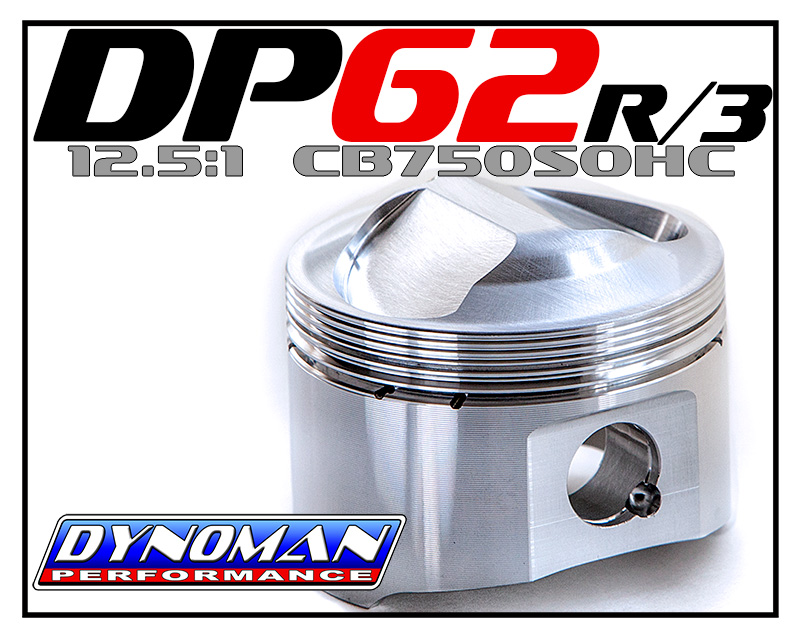

  -   Formula 750 62mm

   CB750 F2
   1977-78

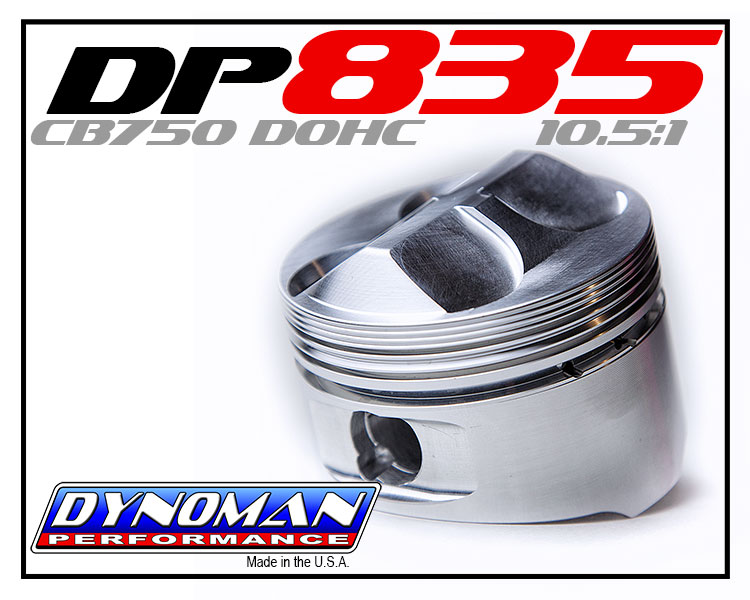

   CB750 DOHC
   1979-82

   CB500 CB550  |  CB650
   1971-82

   NT650GT HAWK
   1988-91

   CBR900rr
   1992-95


   CBR1000F & Big One
   1991, 1993-96

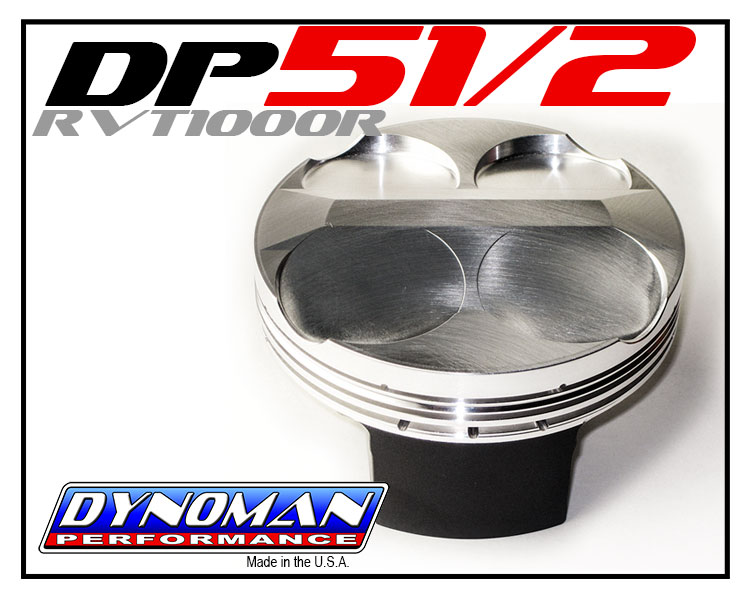

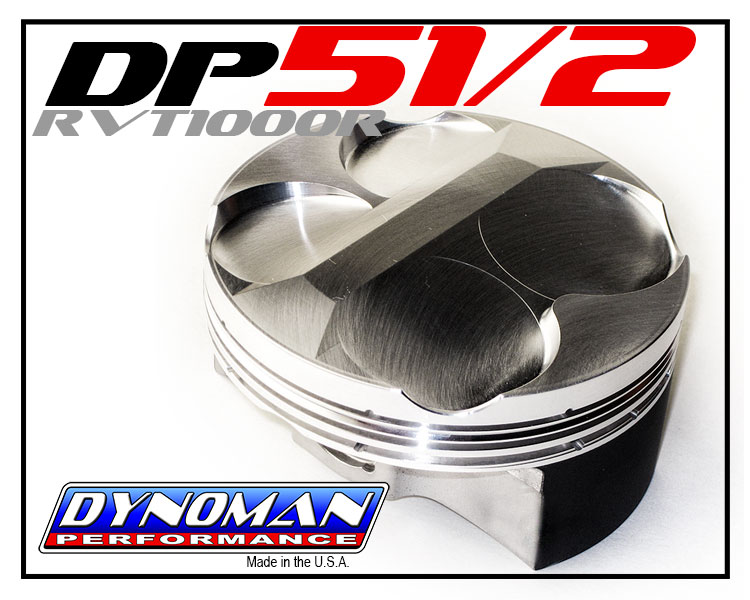

   RC51 - RVT1000
   2000-06

   CBR1100xx Blackbird
   1996-2007


    GPz550/KZ550

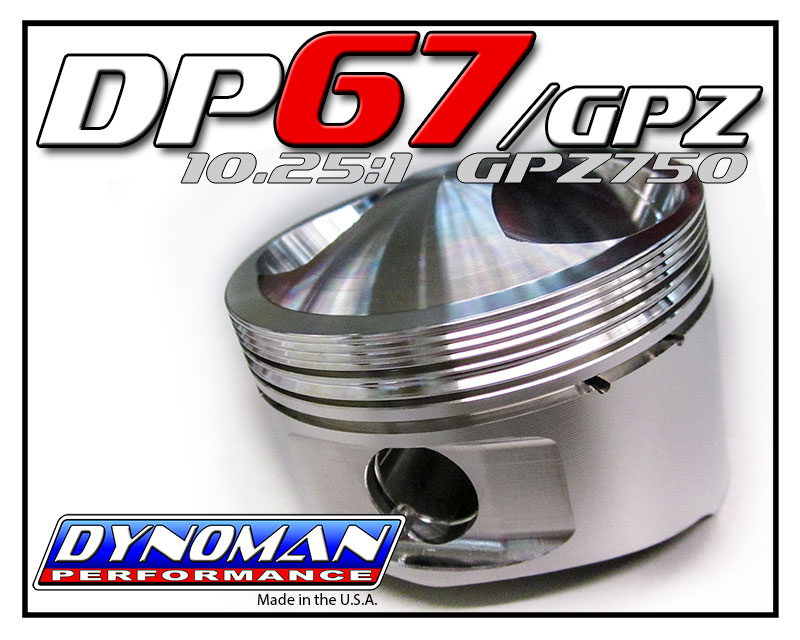

    GPz750/KZ750
    1980-85

    GPZ750 Turbo
    1983-86

    ZX7r
    1991-95

    KZ1000

    1977-80

    KZ1000 J/R
    1981-83
    GS550
    1977-82   2-Valve

    GSXr750 1988-89
    GSX750 Katana 1989-97

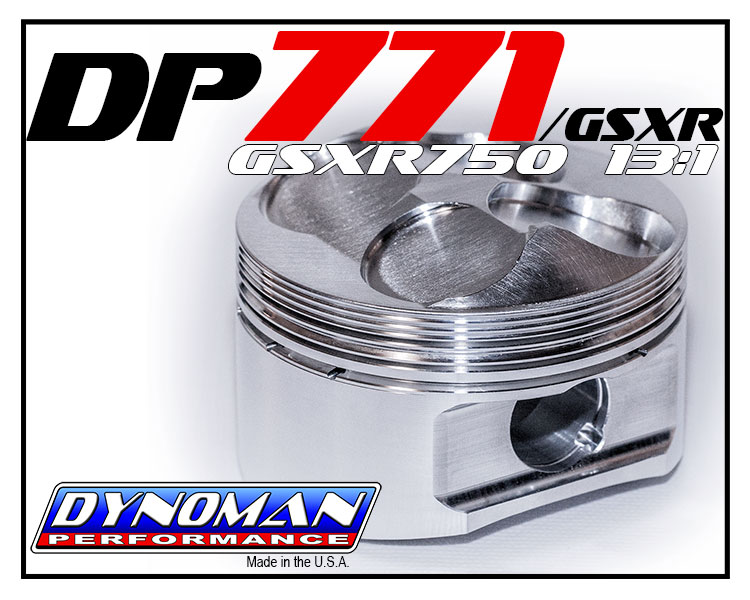

    GSXR750 1992-95

    GS1000
    1978-79   2-Valve

    GSX-S1000

    GS1100
    1981-83 4-Valve

    GS1100G / GK
    1982-84   2-Valve

     GS1150
     1984-86   4-Valve
     FZ600 1986-88

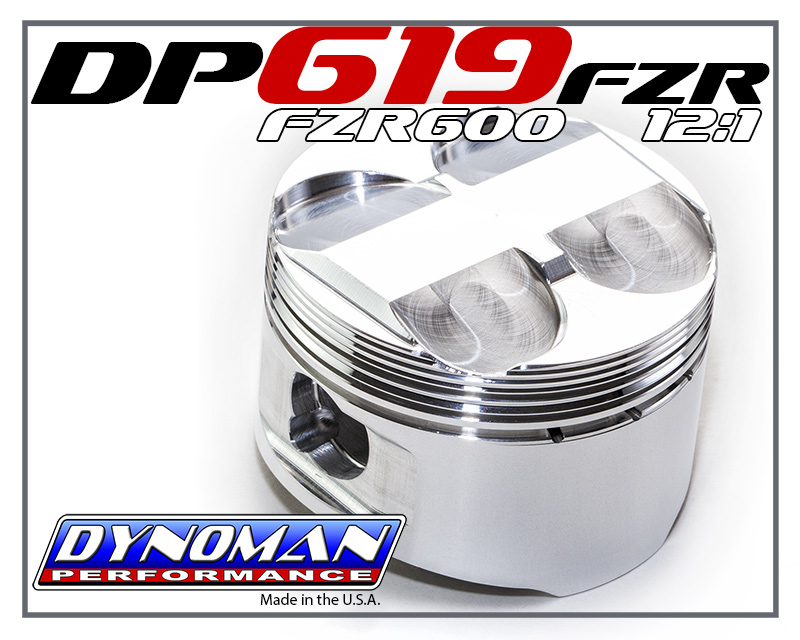

    FZR600 1989-99

    FZ750 1986-89

    FZR1000 1987-88

    FZR1000 1989-96
    YZF1000 1997-98

    FJ1100 / 1200

    VMax
Dynoman Performance Honda Piston Kits
  CB750 SOHC     1969-76 K/F   +  1977-78 K

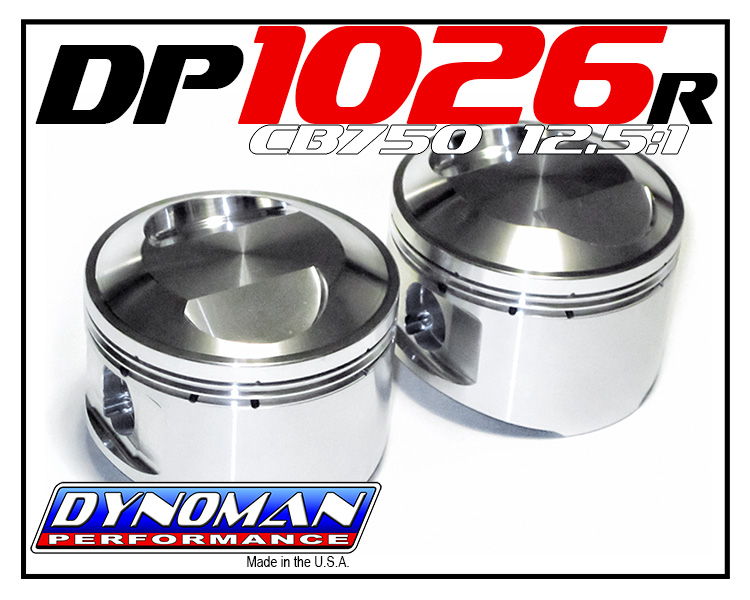

DP1026/r

Dynoman 1026 race kit for CB750 SOHC


3D Under Dome Milling available for this piston:
Dynoman 3D Under Dome Milling for Pistons
1026cc
72mm
12.5:1
FEATURES:

High compression kit for Drag and Road Racing. Available in 2 or 3 ring configuration. Many custom features available; we build them exactly the way
you want them!

Also available with 17mm wrist pins (requires custom rods). This option is highly recommended for racing applications!

DP Sleeves

~ Custom Features Information

*
Cylinder Bottom Taper Information*

TECH SHEET
Please email us for details on these custom piston kits!

DP1026

72mm Piston Kit for CB750 at Dynoman DP1026


3D Under Dome Milling available for this piston:
Dynoman 3D Under Dome Milling for Pistons

1026cc
72mm
10.5:1

190 grams

FEATURES:

For the serious enthusiast and engine builder, this kit features Smooth Finished Domes, Accumulator Grooves, and Contact Reduction Grooves.

This kit requires engine case boring,
cylinder re-sleeving, and heavy duty Top End Studs.

We also recommend Carrillo Rods, and heavy duty Bottom End Studs.

Also available with 17mm wrist pins (requires custom rods). This option is highly recommended for racing applications!

DP 315 Cam
Racing Valve Springs
Titanium Retainers

Sleeves
also compliment this 1026cc set-up.

For 1969-78 Honda CB750 K
     1975-76 Honda CB750F

~ Custom Features Information

*Cylinder Bottom Taper Information*

TECH SHEET

Please contact us for estimated production time on this special order kit

Piston Kit
Pistons, Rings, Pins, Clips, & MLS Head Gasket
$749.95



Complete Kit
Same as above plus Sleeves and Viton RCS Base Gasket
$1099.95
Please contact us for estimated production time on this special order kit

DP1000/71r

DP1000 Race Piston Kit for CB750 at Dynoman






3D Under Dome Milling available for this piston, save approx 15 grams:
Dynoman 3D Under Dome Milling for Pistons
998cc
71mm
12.5:1

195 Grams
FEATURES:

High compression kit for maximum torque and horsepower! Flat top forged piston offers better flow characteristics as well as a design that is compatible with any combustion chamber - no more worries about piston to head intersection! Pistons also feature accumulator grooves for better ring control and smooth finished crowns.

This kit requires engine case boring,
cylinder re-sleeving, and heavy duty Top End Studs.

We also recommend Carrillo Rods, and heavy duty Bottom End Studs.

Also available with 17mm wrist pins (requires custom rods). This option is highly recommended for racing applications!

DP 315 Cam
Racing Valve Springs
Titanium Retainers

also compliment this 1000cc set-up.

For 1969-78 Honda CB750 K
     1975-76 Honda CB750F

~ Custom Features Information

*Cylinder Bottom Taper Information*

TECH SHEET

Please contact us for estimated production time on this special order kit

Piston Kit
Pistons, Rings, Pins, Clips, & MLS Head Gasket

$749.95



Complete Kit
Same as above plus Sleeves and Viton RCS Base Gasket
$1099.95

Please contact us for estimated production time on this special order kit

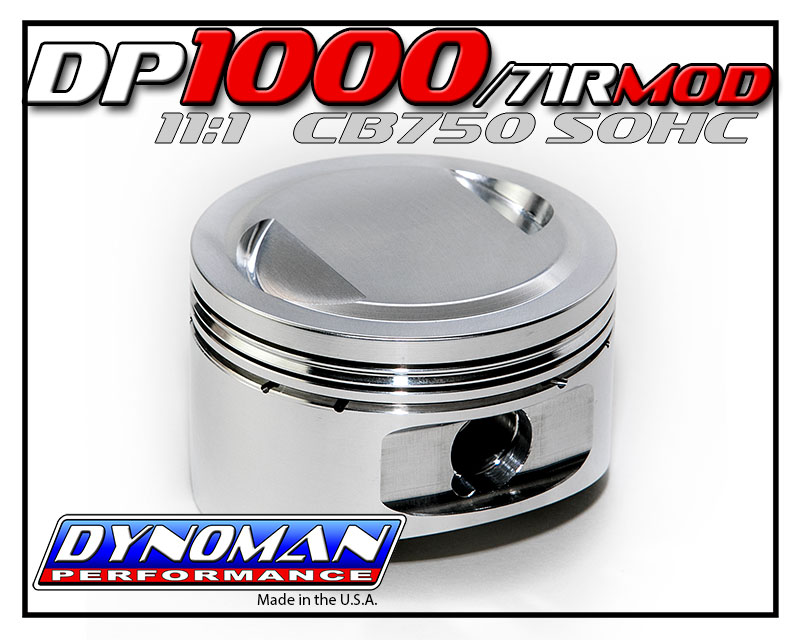

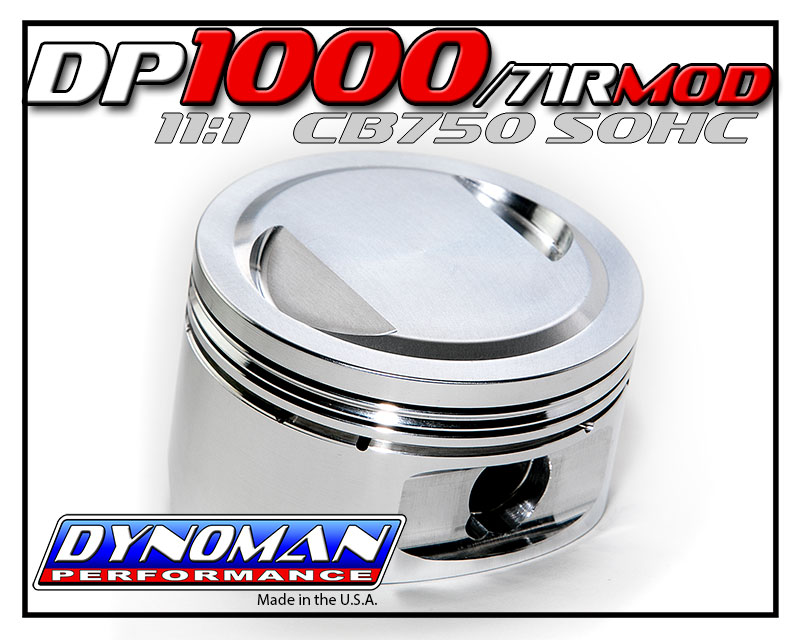

DP1000/71r
MOD

Dynoman 1000cc Pistons for CB750 SOHC

Dynoman 1000cc Pistons for CB750 SOHC

3D Under Dome Milling available for this piston, save approx 15 grams:
Dynoman 3D Under Dome Milling for Pistons
998cc
71mm
11:1
FEATURES:

Moderately high compression kit for impressive torque and horsepower! Flat top forged piston offers better flow characteristics as well as a design that is compatible with any combustion chamber - no more worries about piston to head intersection! Pistons also feature accumulator grooves for better ring control and smooth finished crowns.

This kit requires engine case boring,
cylinder re-sleeving, and heavy duty Top End Studs.

We also recommend Carrillo Rods, and heavy duty Bottom End Studs.

Also available with 17mm wrist pins (requires custom rods). This option is highly recommended for racing applications!

For 1969-78 Honda CB750 K
     1975-76 Honda CB750F

~ Custom Features Information

*Cylinder Bottom Taper Information*

Please contact us for estimated production time on this special order kit

TECH SHEET

Piston Kit
Pistons, Rings, Pins, Clips, & MLS Head Gasket
$749.95



Complete Kit
Same as above plus Sleeves and Viton RCS Base Gasket

$1099.95

Please contact us for estimated production time on this special order kit


DP1000r

DP1000r Pistons for CB750 at Dynoman



3D Under Dome Milling available for this piston:
Dynoman 3D Under Dome Milling for Pistons

998cc
71mm
10.25:1

185 grams
FEATURES:

Flat top forged piston offers better flow characteristics as well as a design that is compatible with any combustion chamber - no more worries about piston to head intersection! Pistons also feature accumulator grooves for better ring control.

Also available with 17mm wrist pins (requires custom rods). This option is highly recommended for racing applications!

This kit requires engine case boring,
cylinder re-sleeving, and heavy duty Top End Studs.

We also recommend
Carrillo Rods, and heavy duty Bottom End Studs.

DP 315 Cam
Racing Valve Springs
Titanium Retainers
Sleeves
also compliment this 1000cc set-up.

For 1969-78 Honda CB750 K
     1975-76 Honda CB750F

Please contact us for estimated production time on this special order kit


This piston kit is also available in our
Performance Engine Package

** TECH SHEET **

~ Custom Features Information

*Cylinder Bottom Taper Information*

Piston Kit
Pistons, Rings, Pins, Clips, & CFM Head Gasket
$749.95




Complete Kit
Same as above plus Sleeves and Viton RCS Base Gasket
$1099.95

Please contact us for estimated production time on this special order kit



DP915

DP915 Piston Kit at Dynoman


915cc
68mm
10.5:1

173g
1969-78 CB750K
1975-76 CB750F

Kit includes:
(4) Pistons
(4) Ring sets
(4) Wrist Pins
(8) Wrist Pin Clips
(1) MLS Head Gasket

FEATURES:


This is a gorgeous, full-featured forged piston with Accumulator Grooves, Contact Reduction Grooves, and Smooth Finished Domes. An excellent choice for street or strip!

Perfect for cleaning up a worn 890cc engine as well.

Special price limited to stock on hand!!

This kit requires engine case boring,
cylinder re-sleeving, and heavy duty Top End Studs.

We also recommend Carrillo Rods, and heavy duty Bottom End Studs.

DP 315 Cam
Racing Valve Springs
Titanium Retainers
also compliment this 915cc set-up.

For 1969-78 Honda CB750 K
       1975-76 Honda CB750F

This piston kit is also available in our
Performance Engine Package

** TECH SHEET **

~ Custom Features Information

*Cylinder Bottom Taper Information*
Piston Kit
Pistons, Rings, Pins, Clips, & MLS Head Gasket
$749.95



Complete Kit
Same as above plus Sleeves and Viton RCS Base Gasket
$1099.95

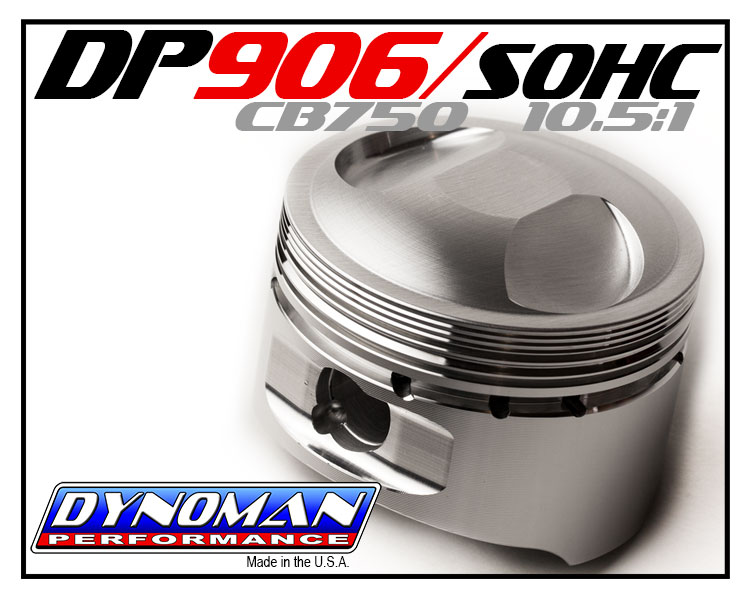

DP906/sohc

DP906 Piston Kit for CB750 at Dynoman
906cc
67.5mm
10.5:1

169 grams
FEATURES:

A great full-featured forged piston with Accumulator Grooves, Contact Reduction Grooves, and Smooth Finished Domes. An excellent choice for street or strip!

Perfect for cleaning up a worn 890cc engine as well.

This kit requires engine case boring,
cylinder re-sleeving, and heavy duty Top End Studs.

We also recommend Carrillo Rods, and heavy duty Bottom End Studs.

DP 315 or 117KHD Cam
Racing Valve Springs
Titanium Retainers
also compliment this 906cc set-up.

For 1969-78 Honda CB750 K
       1975-76 Honda CB750F

** TECH SHEET **

~ Custom Features Information

*Cylinder Bottom Taper Information*

Please contact us for estimated production time on this special order kit

Piston Kit
Pistons, Rings, Pins, Clips, & CFM Head Gasket
$749.95



Complete Kit
Same as above plus Sleeves and Viton RCS Base Gasket
$1099.95

Please contact us for estimated production time on this special order kit


DP890/67r

890 Custom Piston Kit for CB750 SOHC at Dynoman
890cc
67mm
12.5:1

170 grams
FEATURES:

A high compression, forged racing piston featuring a Smooth finished crown, Accumulator grooves, and Contact reduction grooves.

This bore size requires cylinder re-sleeving.

We also recommend Carrillo Rods, and heavy duty  Top and Bottom End Studs.

Complete Kit includes special tapered sleeves that do not require case boring!

For 1969-78 Honda CB750 K
       1975-76 Honda CB750F

** TECH SHEET **

~ Custom Features Information

*Cylinder Bottom Taper Information*

Please contact us for estimated production time on this special order kit

Piston Kit
Pistons, Rings, Pins, Clips, & CFM Head Gasket
$749.95


Complete Kit
Same as above plus Sleeves and Viton RCS Base Gasket
$1099.95

Please contact us for estimated production time on this special order kit

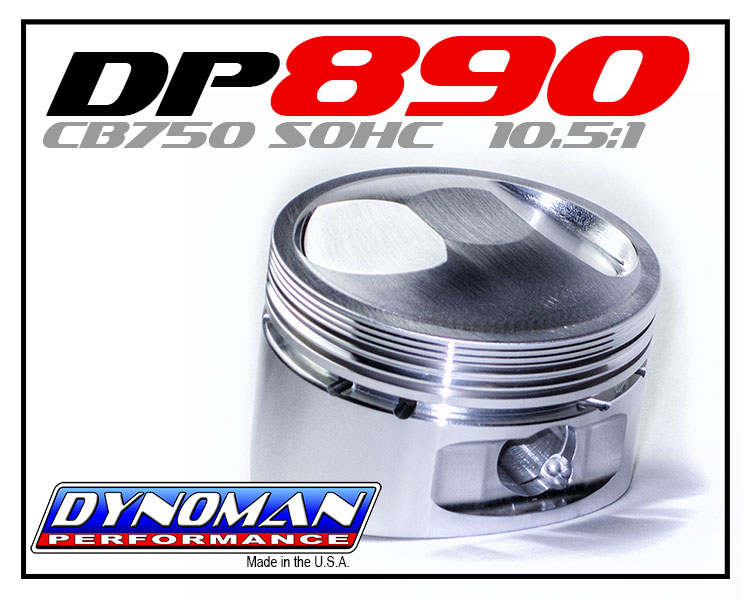

DP890

DP 890cc Piston Kit for CB750 SOHC at Dynoman
890cc
67mm
10.5:1

165 grams
FEATURES:

A super nice, full-featured forged piston with Accumulator Grooves, Contact Reduction Grooves, and Smooth Finished Domes. An excellent choice for street or strip!

This bore size requires cylinder re-sleeving.

We also recommend Carrillo Rods, and heavy duty  Top and Bottom End Studs.

Complete Kit includes special tapered sleeves that do not require case boring!

DP 295 or 315 Cam
Racing Valve Springs
Titanium Retainers
also compliment this 890cc set-up.

For 1969-78 Honda CB750 K
       1975-76 Honda CB750F

** TECH SHEET **

~ Custom Features Information

*Cylinder Bottom Taper Information*

Please contact us for estimated production time on this special order kit

Piston Kit
Pistons, Rings, Pins, Clips, & CFM Head Gasket
$749.95



Complete Kit
Same as above plus Sleeves and Viton RCS Base Gasket
$1099.95

Please contact us for estimated production time on this special order kit


Also available from Dynoman Performance:
  JE 836 Street Kit          JE 836 Race Kit         Wiseco 836 Street Kit

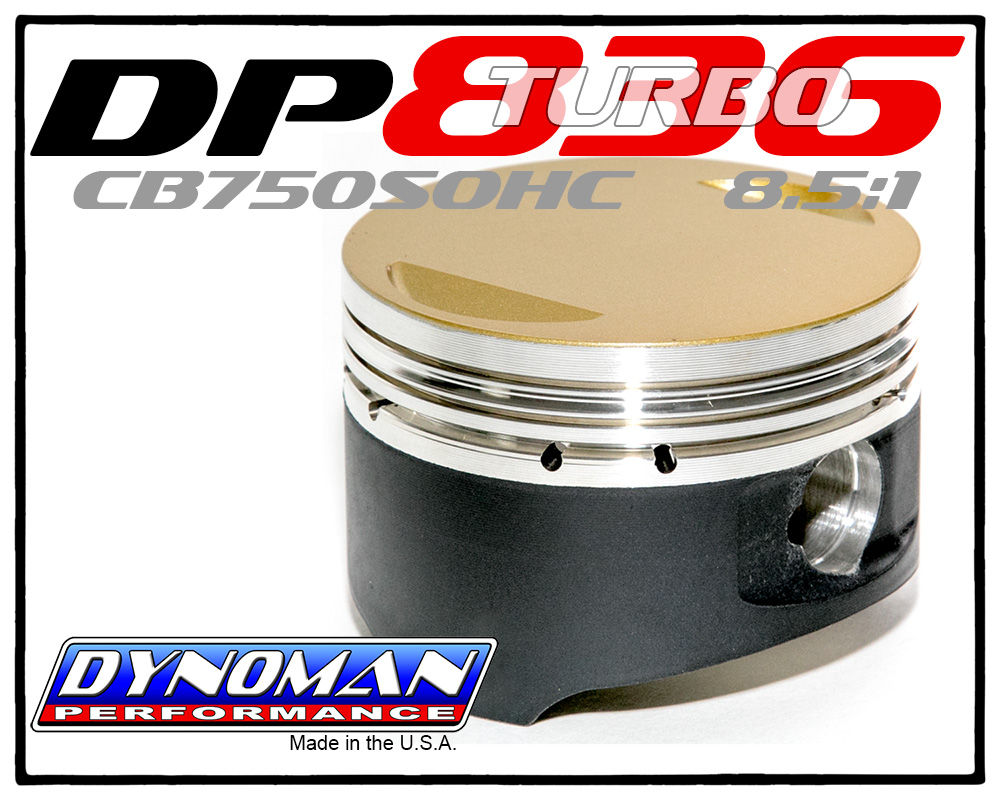

DP836 TURBO

DP836 Turbo Pistons for Honda CB750 at Dynoman

Dynoman Ductile Iron Sleeves

Available with optional TUFF SKIRT and Thermal Crown Barrier!
email for details

Dynoman 836 Turbo Pistons for CB750 SOHC

Dynoman 836 Turbo Pistons for CB750 SOHC



836cc
65mm
8.5:1

152 grams

FEATURES:

Accumulator Grooves to give blow-by gasses a place to go and create better ring control.
Kit includes Tooled Steel Pins!

This kit can also be used for naturally aspirated street engines desiring stock compression.

This kit requires cylinder boring only but we do recommend installing Ductile Iron Sleeves for strength and longevity.

Carrillo Rods strongly recommended with this kit.  Contact us for special package pricing on pistons, sleeves, and rods!



For 1969-78 Honda CB750 K
     1975-76 Honda CB750 F


Please contact us for estimated production time on this special order kit

** TECH SHEET **

~ Custom Features Information

*Cylinder Bottom Taper Information*

Piston Kit:
Pistons, Rings, Pins, Clips, & MLS Head Gasket
$749.95



Complete Kit
Same as above plus Ductile Iron Sleeves and Viton RCS Base Gasket
$1249.95


Please contact us for estimated production time on this special order kit




DP811/64sohc

Dynoman 811 Pistons for CB750 SOHC
64mm
811cc
10.5:1
158g
FEATURES:
For Street Use with stock sleeves,
(cylinder boring only!)

- Accumulator Grooves,
- Contact Reduction Grooves,
- Smooth Finished Domes

(about these features)

Works well with most of our cams.
Contact us for recommendations.


For 1969-78 Honda CB750 K
     1975-76 Honda CB750 F

TECH SHEET

*Cylinder Bottom Taper Information*
Piston Kit includes
(4) Pistons
(4) Ring sets
(4) Wrist Pins
(8) Clips,
(1) CFM20 Head Gasket

$749.95




DP62/r19

Dynoman Formula 750 Racing Pistons


Dynoman 62mm Race Pistons CB750 SOHC

Dynoman 62mm Race Pistons CB750 SOHC

62mm
760cc
12.5:1
153g
DP62/r19 FEATURES:

For roadracing use
Honda CR750 style
Legal for most Formula 750 Racing
2-Ring pistons
153g piston weight
+1mm oversize

Features:
- Tuff Skirt Coating
- Smooth Finished Domes
- Accumulator Grooves
- Contact Reduction Grooves

For 1969-78 Honda CB750 K
     1975-76 Honda CB750 F

TECH SHEET



Dynoman 62mm Race Pistons CB750 SOHC
Piston Kit includes
(4) Pistons
(4) Ring sets
(4) Wrist Pins
(8) Clips
(1) MLS Head Gasket

$799.95





DP62/r3

 Dynoman Race Pistons for Honda CB750 SOHC  62mm
62mm
760cc
12.5:1

157 grams

DP62/r3 FEATURES:

For hot street OR roadracing use
Honda CR750 style.
Legal for most Formula 750 Racing.
3-Ring piston type.
+1mm oversize.
Smooth finished domes,
Accumulator grooves,
Contact reduction grooves.

For 1969-78 Honda CB750 K
     1975-76 Honda CB750 F

* TECH SHEET *

~ Custom Features Information

*Cylinder Bottom Taper Information*

Please contact us for estimated production time on this special order kit

Piston Kit includes
(4) Pistons
(4) Ring sets
(4) Wrist Pins
(8) Clips
(1) CFM20 Head Gasket

$749.95


Please contact us for estimated production time on this special order kit



More CB750 SOHC Piston Kits


    JE Pistons 836cc 10.5:1 Kit      #144539

  JE Pistons 836cc 12:1 Kit      #149295

  Wiseco 836cc Kit  10.25:1
#K836

  CB750 SOHC F2 1977-78
DP 836/65f2

836 Piston Kit for CB750 F2 at Dynoman

65mm
836cc

10.5:1

175 grams
FEATURES:

Smooth Finished Dome with No Sharp Edges,
Accumulator Groove for Better Ring Control,
Contact Reduction Grooves for Less Pre-ignition

For 1977-78 CB750F2 (black motor)

This kit requires cylinder boring only.
Available with CFM-20 or MLS head gasket.

* Special price limited to stock on hand

ABOUT THE DYNOMAN F2 PISTON KITS:
As the 77-78 Honda 750 F2 has a 18% larger combustion chamber to compensate for the larger valves, through the years many people have installed the standard 836cc (ex: Wiseco K836) kits for the 69-76 engines only to discover that the compression was too low to give them the extra power that they were after.

Dynoman offers our custom 836, 915, and 970cc piston kits for the F2. They have the correct dome to raise the compression to a true 10.5:1 and 11.5:1 respectively.

These pistons are state of the art diamond cut on CNC machines in the USA from 2618 aluminum forgings. This is the same alloy used in many pro stock pistons. This process makes them lighter than some of the cast pistons used in the 70s, but much stronger. They also come with a brushed dome to smooth any sharp edges.

The pistons feature large valve pockets for the 31 and 34mm valves used in the F2 engines. They also have contact reduction grooves above the top ring for pre-ignition control, and accumulator grooves below the top ring for better ring control.

The DP836/65f2 kit is the same bore size as the standard Wiseco K836cc kit, so they are a drop in for any F2 with the standard K836 Wiseco kit already installed.

*TECH SHEET*

~ Custom Features Information

*Cylinder Bottom Taper Information*


Piston Kit
Pistons, Rings, Pins, Clips, & CFM Head Gasket
$699.95*



Piston Kit
Pistons, Rings, Pins, Clips, & MLS Head Gasket
$729.95*




DP 915/68f2

915 Piston Kit for CB750 F2 at Dynoman

68mm
915cc

10.5:1

161 grams
FEATURES:

This piston kit is loaded with upgrades!!
- Late
ral Gas Ports to Assist
   in Ring Seal,
- Brushed Dome with No Sharp Edges,
- Accumulator Groove for
   Better Ring Control,
- Contact Reduction Grooves
   for Less Pre-ignition.

This piston kit is a true 68mm size!

This kit requires engine case boring, cylinder re-sleeving, and heavy duty top end studs
.

We also recommend Carrillo Rods, and heavy duty Bottom End Studs.

DP 117KHD Cam
Racing Valve Springs
Titanium Retainers
also compliment this 915cc set-up!

For 1977-78 CB750F2 (black motor)

Please contact us for estimated production time on this special order kit


Piston Kit
Pistons, Rings, Pins, Clips, & CFM Head Gasket
$749.95



Complete Kit
Same as above plus Sleeves and Viton RCS Base Gasket
$1099.95


Please contact us for estimated production time on this special order kit



DP970/70f2

Dynoman 970 Pistons for CB750 F2


Dynoman 970cc Piston kit for CB750 F2


970cc
70mm
11.5:1

187 grams
Feature Packed Hot Street and Racing Pistons!
Smooth Finished Crowns, Accumulator Grooves
Contact Reduction Grooves
, Under Crown Milling for weight reduction.

This kit requires engine case boring, cylinder re-sleeving, and heavy duty top end studs.

Kit includes (4) Pistons, (4) Ring sets, (4) Pins, (8) Wrist Pin Clips, and Cometic CFM20 Head Gasket.

For 1977-78 CB750F2 (black motor)

Spare single piston/ring set/pin/clips
available for this kit


*TECH SHEET*

Accessories:
- Carrillo Rods
- MLS Head Gasket
- Viton Coated Base Gasket


~ Custom Features Information

*Cylinder Bottom Taper Information*

Please contact us for estimated production time on this special order kit


Piston Kit
Pistons, Rings, Pins, Clips, & CFM Head Gasket
$749.95



Complete Kit
Same as above plus Sleeves and Viton RCS Base Gasket
$1099.95

Please contact us for estimated production time on this special order kit


  CB750 DOHC   1979-82

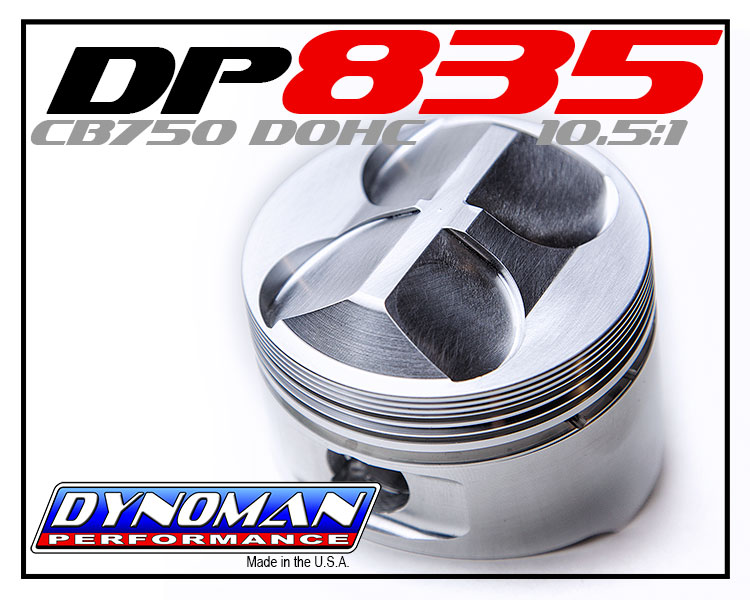

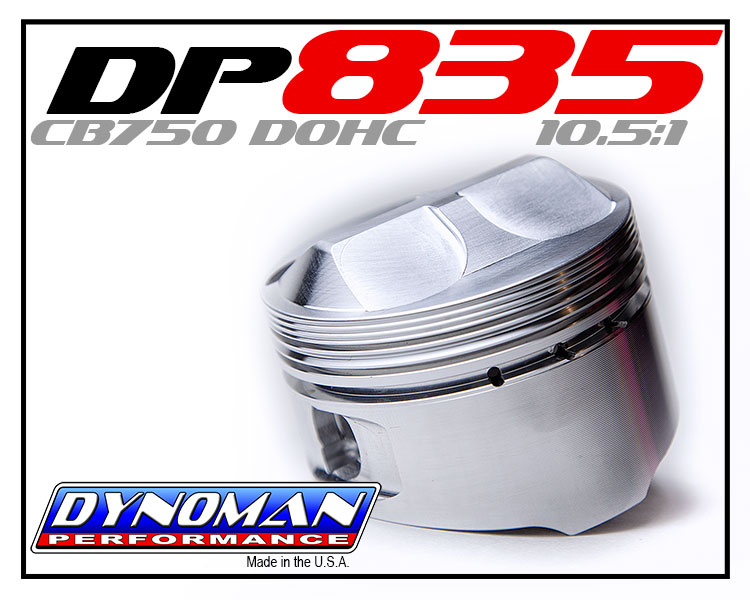

DP835/dohc
Dynoman DP835 Pistons for CB750 DOHC

Dynoman DP835 Pistons for CB750 DOHC

Dynoman DP835 Pistons for CB750 DOHC

835cc
10.5:1
65.5mm     835cc
Feature Packed Hot Street and Racing Pistons!

Smooth Finished Crowns - no hot spots
Accumulator Grooves
- better ring control
Contact Reduction Grooves
- less pre-ignition
Actual 10.5:1 Compression Ratio - more power!
(other manufacturers claim 10.25 but
are actually lower)


Bore-in with stock sleeves!
Hone in (clean up) for 823cc kits
!

Made in the USA!
Actual weight just 167 grams

Kit includes (4) Pistons, (4) Ring sets, (4) Pins, (8) Wrist Pin Clips, and Cometic CFM20 Head Gasket.


For 1979-82 CB750F/K/C




      *TECH SHEET*

~ Custom Features Information


*Cylinder Bottom Taper Information*

$839.95


Please contact us for estimated production time on this special order kit

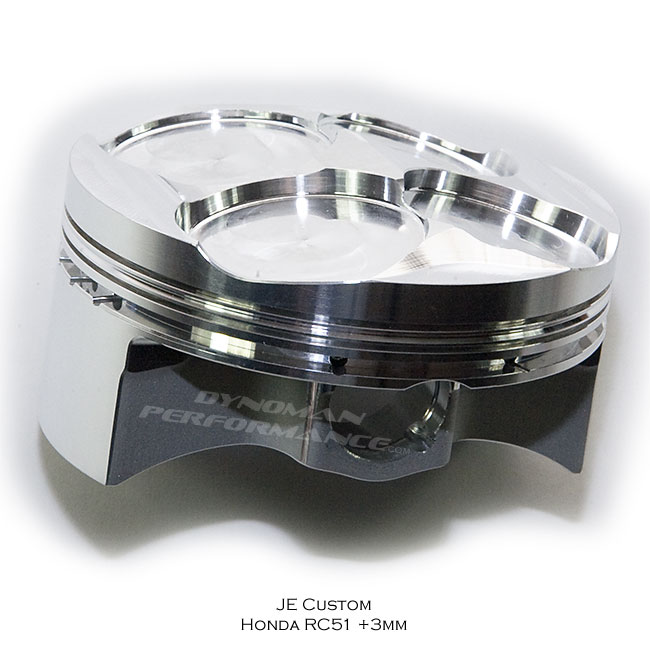

  RC51
DP 51/2
Dynoman Piston Kit for RC51 Honda

Dynoman Piston Kit for RC51 Honda

Dynoman Piston Kit for RC51 Honda
102mm
+2mm
12.3:1

407 grams
2000-06 HONDA RC51 (RVT1000R)

Features FSR Style Piston Design, Lateral Gas Porting, Broached Pin Oilers, Accumulator Grooves, Smooth Finished Crowns, and Tuff Skirt Coating.

- Machined from 2618 T6 high tensile forged aluminum

- Designed specifically for racing applications;
  professional installation recommended.

- Kit includes (2) Pistons, (2) Ring sets, (2) Wrist Pins, (4) Clips, and Cometic C8765 MLS Head Gaskets

** TECH SHEET **

~ Custom Features Information

*Cylinder Bottom Taper Information*

Now available as custom order only, please contact us for current price and production time
    NT650GT HAWK
DP663

DP663 Piston Kit for NT650 Honda

DP663 Piston Kit for NT650 Honda



+1mm
80mm
12:1 CR
1988-91 NT650GT Hawk

- Kit includes (2) Pistons, (2) Ring sets,
   (2) Wrist Pins, (4) Clips, and
   Cometic Head Gasket set #C8207

- Features Accumulator Grooves


-
275g weight

Bore-in with stock sleeves!

Please allow 2 to 3 weeks
production time for this custom kit!


**TECH SHEET**

~ Custom Features Information

*Cylinder Bottom Taper Information*

Now available as custom order only, please contact us for current price and production time
    CBR900rr    1992-95
DP945/rr

Dynoman Pistons for CBR900rr Honda
+2mm
72mm
945cc
12:1
Kit includes
  (4) Pistons,
  (4) Ring sets,
  (4) Pins,
  (8) Wrist Pin Clips,
  MLS Head Gasket
C8401

Weight: 181 grams

Features Accumulator Grooves and Brushed Domes.

Bore-in with stock sleeves!

TECH SHEET

Please contact us for estimated production time on this special order kit


*Cylinder Bottom Taper Information*
~ Custom Features Information

$839.95



Please contact us for estimated production time on this special order kit
     1991, 1993-96 CBR1000F     &    CBR1000 BIG ONE
DP1049/cbr

DP1049/cbr Piston Kit for CBR1000F at Dynoman



+2mm
1049cc
79mm
12:1
Kit includes (4) Pistons, (4) Ring sets, (4) Pins, (8) Wrist Pin Clips, and C8008 MLS .010" Head Gasket

217 gram weight

Cylinder boring only (sleeving not required)

Custom Features:
- Smooth Finished Crowns
- Accumulator Grooves
- Contact Reduction Grooves

Please contact us for estimated production time on this special order kit


~ Custom Features Information


*Cylinder Bottom Taper Information*

TECH SHEET



$839.95



Please contact us for estimated production time on this special order kit


   1996-2007 CBR1100XX Blackbird
DP1195xx

DP1195xx for Blackbird CBR1100xx at Dynoman



81mm
+2mm
11:1
Kit includes (4) Pistons, (4) Ring sets, (4) Pins,
(8) Wrist Pin Clips, and C8499 MLS Head Gasket

Custom Features:
- Smooth Finished Crowns
- Accumulator Grooves

Weight: 239 grams

Cylinder boring only (sleeving not required)

Please contact us for estimated production time on this special order kit


~ Custom Features Information

*Cylinder Bottom Taper Information*

TECH SHEET



$839.95



Please contact us for estimated production time on this special order kit
Dynoman Performance Kawasaki Piston Kits

GPz550/KZ550     GPz750/KZ750     ZX7r     KZ1000     KZ1000 J/R

We make CUSTOM Pistons!
If you don't see what you're looking for, email us.
   GPz550 / KZ550
DP615z

DP615z Piston Kit for GPz by Dynoman

DP615z Piston Kit for GPz by Dynoman

DP615z Piston Kit for GPz by Dynoman




61mm
615cc
12:1 CR
Kawasaki GPZ550 (1982 - 1985)
Kawasaki KZ550 (1980 - 1983)


- Kit includes:
  (4) Pistons,
  (4) Ring sets,
  (4) Wrist Pins,
  (8) Wrist Pin Clips
  (1) CFM20 Head Gasket

Features:
- Accumulator Grooves
- Lateral Gas Porting
- Available with Tuff Skirt coating
- 147g weight
- Bore-in kit; uses stock sleeves!

Please contact us for estimated production time on this special order kit


**TECH SHEET **

~ Custom Features Information

*Cylinder Bottom Taper Information*



DP615z
$749.95



DP615z-TS
With TUFF SKIRT coating
$849.95



      ZX-7R
DP748/zxr

DP748/zxr Piston Kit for ZX7r at Dynoman

Cometic Head Gasket at Dynoman ZX7


748cc
71mm

13:1
For 1991-95 ZX-7r, ZX750, ZX750r
ZX750, ZX750R, ZX7 1991-95

Kit Includes:
(4) Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
and C8386 MLS Head Gasket

Features Accumulator Grooves, and
Smooth Finished Crowns
~ Custom Features Information

*Cylinder Bottom Taper Information*

TECH SHEET


Please contact us for estimated production time on this special order kit

$839.95
Pistons, Rings, Pins, Clips, and MLS Head Gasket



Please contact us for estimated production time on this special order kit



DP 791/zxr
Dynoman DP791/zxr Pistons for Kawasaki ZX-7r


Shown below with optional Skirt Coating:
Dynoman DP791/zxr Pistons for Kawasaki ZX-7r

Cometic Head Gasket at Dynoman ZX7

791cc
73mm

13:1
For 1991-95 ZX-7r, ZX750, ZX750r

Kit Includes:
(4) Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
and Custom MLS Head Gasket

Features Accumulator Grooves, and
Smooth Finished Crowns.

181 grams

Available with optional Skirt Coating!

~ Custom Features Information

*Cylinder Bottom Taper Information*



TECH SHEET

Please contact us for estimated production time on this special order kit


$839.95

DP791/zxr
Pistons, Rings, Pins, Clips, and MLS Head Gasket



$969.95
DP791/zxr-TSC
Same as above plus
TUFF SKIRT piston coating and LATERAL GAS PORTING





DP 833/zxr
ZX7 Piston Kit at Dynoman Performance

ZX7 Piston Kit at Dynoman Performance

Cometic Head Gasket at Dynoman ZX7




833cc
75mm

13:1
For 1991-95 ZX-7r, ZX750, ZX750r

Kit Includes:
(4) Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
and Custom MLS Head Gasket

Features TUFF Skirt Coating, Lateral Gas Ports, Accumulator Grooves, and
Smooth Finished Crowns.

May require re-sleeving

~ Custom Features Information

*Cylinder Bottom Taper Information*


Please contact us for information and estimated production time on this special order kit


     KZ / GPz750
DP67/gpz

Custom Piston Kit for GPZ750 and KZ750 at Dynoman



67mm
10.25:1
+1mm OS
Fits:
Kawasaki GPz750 1983-85
Kawasaki KZ750 1980-83

- Kit includes:
  (4) Pistons,
  (4) Ring sets,
  (4) Wrist Pins,
  (8) Wrist Pin Clips
   CFM20 Head Gasket

Features:
- Accumulator Grooves
- Contact Reduction Grooves
- Smooth Finished Domes
- 164g weight
- Bore-in kit; uses stock sleeves!

TECH SHEET



Please contact us for estimated production time on this special order kit


$749.95


Please contact us for estimated production time on this special order kit

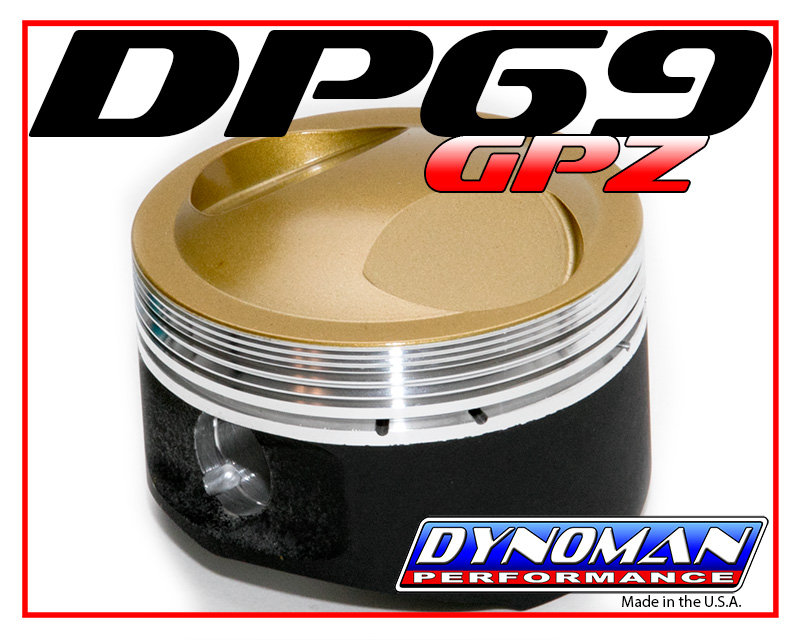

DP69/gpz

Dynoman GPz750 Custom Pistons
Shown with optional features








69mm
10.25:1
+3mm OS
Fits:
Kawasaki GPz750 1983-85
Kawasaki KZ750 1980-83

- Kit includes:
  (4) Pistons,
  (4) Ring sets,
  (4) Wrist Pins,
  (8) Wrist Pin Clips
   CFM20 Head Gasket

Features:
- Accumulator Grooves
- Contact Reduction Grooves
- Smooth Finished Domes
- Bore-in kit; uses stock sleeves!

TECH SHEET




$749.95




As shown with optional Thermal Crown and Tuff Skirt coatings.
$949.95


Please contact us for estimated production time on this special order kit.

   ZX750 E1 Turbo    1983-86
DP809B

GPZ750 Turbo Pistons at Dynoman

GPZ750 Turbo Pistons at Dynoman


69mm
8:1
+3mm OS
Fits:
Kawasaki GPz750 1983-85
Kawasaki KZ750 1980-83

- Kit includes:
  (4) Pistons,
  (4) Ring sets,
  (4) Wrist Pins,
  (8) Wrist Pin Clips
   CFM20 Head Gasket


Features:
- Thermal Crown Barrier
- TUFF Skirt Coating
- Accumulator Grooves
- Contact Reduction Grooves
- Smooth Finished Domes
- Bore-in kit; uses stock sleeves!


Please contact us for current pricing and estimated production time on this special order kit
 .
   KZ1000   1977-80
DP 1200

DP1200
DP1200
DP1200

1197cc
76mm

13.5:1

For KZ1000 thru 1980

Kit includes:
(4) Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
and MLS Head Gasket

Features lateral gas porting, double pin oilers, and accumulator grooves.

~ Custom Features Information

*Cylinder Bottom Taper Information*

DP 1200   DP1200

Sleeves available separately

* TECH SHEET *


$749.95
Pistons, Rings, Pins, Clips, and MLS Head Gasket.





Please contact us for estimated production time on this special order kit

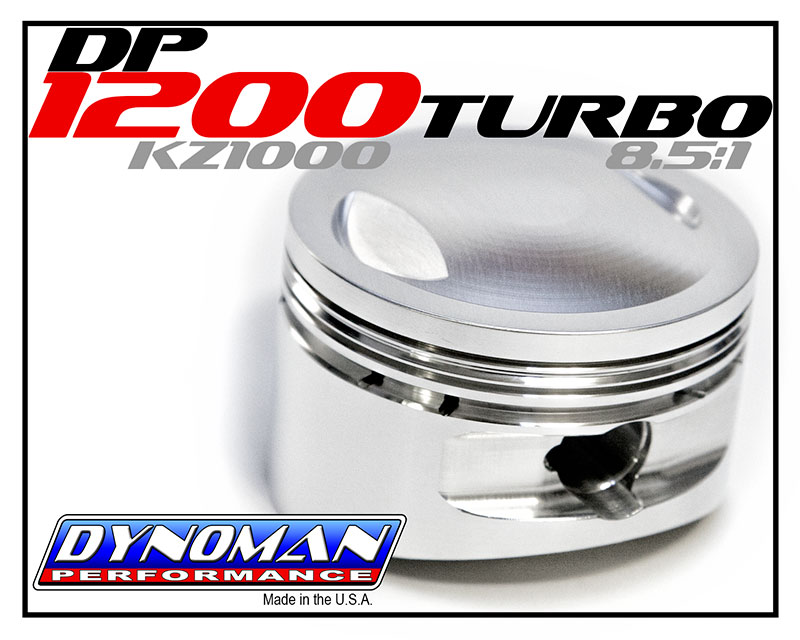

DP 1200 turbo

Dynoman 1200cc DP1200 Turbo Piston Kit for KZ1000

1200cc
76mm
8.5:1
For KZ1000 thru 1980 - TURBO

Kit includes:
(4) Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
and MLS Head Gasket

Features Accumulator Grooves
and Smooth Finished Crowns.
229 grams

~ Custom Features Information

*Cylinder Bottom Taper Information*

Sleeves available separately

* TECH SHEET *

$749.95

Please contact us for estimated production time on this special order kit


DP 1075 turbo

Dynoman 1075cc Turbo Pistons for KZ1000








1075cc
72mm

8.5:1

For KZ1000 thru 1980 - TURBO

Kit includes:
(4) Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
and MLS Head Gasket

Features Accumulator Grooves
and Smooth Finished Crowns.
195 grams


Optional extras:
TUFF Skirt Coating, Lateral Gas Ports
~ Custom Features Information

*Cylinder Bottom Taper Information*

Sleeves available separately

**TECH SHEET**



Please contact us for estimated production time on this special order kit


$749.95


     KZ1000 J & R    1981-83
DP 75/J

DP75/J Piston Kit for KZ1000J at Dynoman








1170cc
75mm
10.5:1
+5.5mm
For 1981-83 KZ1000J and KZ1000R

Kit Includes:
(4) Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
and CFM Head Gasket

Features Accumulator Grooves,
Smooth Finished Crowns, and
Under Dome Lightening is available.

17mm wrist pins

~ Custom Features Information

*Cylinder Bottom Taper Information*

TECH SHEET

230 grams
Re-sleeving Required



$749.95
Pistons, Rings, Pins, Clips, and CFM20 Head Gasket



Please contact us for estimated production time on this special order kit

Suzuki Piston at Dynoman Performance
     GS1150  4-valve 1984-86
DP1168/gs

Dynoman GS1150 Piston Kit

Dynoman Pistons for GS1150



1168cc
75mm
10.5:1
+1mm

Also available
76mm 1197cc, & 77mm 1229cc
Features:
- Accumulator Grooves
- Contact Reduction Grooves
- Smooth Finished Domes

   about these features and other available add-ons

Weight: 233 Grams

For GS1150 engines with 20mm wrist pin.

TECH SHEET

*Cylinder Bottom Taper Information*


Please contact us for estimated production time on this special order kit


$839.95
KIT INCLUDES:
Pistons, Rings, Pins, Clips, and CFM20 Head Gasket


   GS1100  4-valve 1980-83
DP 1260

Dynoman 1260 Piston Kit for GS1100

1260cc
78mm

13.5:1

For 1980-83 Suzuki GS1100 4-valve

Features:
Accumulator Grooves
Contact Reduction Grooves
Smooth Finished Domes

Weight: 225 Grams

~ Custom Features

*Cylinder Bottom Taper Information*

* TECH SHEET *

Please contact us for estimated production time on this special order kit



DP1260 Kit

(4) Pistons
(4) Ring Sets,
(4) Wrist Pins
(8) Retainer Clips,
(1) MLS Head Gasket


$839.95

DP 1260 MOD

1260cc Piston for GS1100 at Dynoman Performance
1260cc
78mm

11.5:1



Also available in 10.5:1

For 1980-83 Suzuki GS1100 4-valve

Features:
Accumulator Grooves
Contact Reduction Grooves
Smooth Finished Domes

Weight: 226 Grams

~ Custom Features

*Cylinder Bottom Taper Information*

* TECH SHEET *

Please contact us for estimated production time on this special order kit



DP1260 MOD Kit

(4) Pistons
(4) Ring Sets,
(4) Wrist Pins
(8) Retainer Clips,
(1) MLS Head Gasket


$839.95


DP 1198/GS

Suzuki GS1100 Piston Kit at Dynoman Performance
1198cc
76mm

13.5:1


For 1980-83 Suzuki GS1100 4-valve

Features:
Accumulator Grooves
Contact Reduction Grooves
Smooth Finished Dome

Weight: 235 Grams

~ Custom Features

*Cylinder Bottom Taper Information*

TECH SHEET



Please contact us for estimated production time on this special order kit


DP1198/gs Kit

(4) Pistons
(4) Ring Sets,
(4) Wrist Pins
(8) Retainer Clips,
(1) MLS Head Gasket


$839.95




DP 1170
Dynoman Piston Kit DP1170 for GS1100 Suzuki








1170cc
12:1
75mm
2.952"
For 1980-83 Suzuki GS1100 4-valve

Fully customized with Lateral Gas Porting, Accumulator Grooves, Smooth Finished Domes, and Contact Reduction Grooves.
~ Custom Features Information

Pistons are also available without all of the extras.
Email us for info.


Great for hot street riding or roadracing!

Weight: 230 grams

*Cylinder Bottom Taper Information*

* TECH SHEET *



Please contact us for estimated production time on this special order kit

DP1170 Kit

(4) Pistons
(4) Ring Sets,
(4) Wrist Pins
(8) Retainer Clips,
(1) MLS Head Gasket


$839.95



DP 1170 MOD

Dynoman 1170cc Race Pistons for GS1100



1170cc
13.5:1
75mm
2.952"
For 1980-83 Suzuki GS1100 4-valve

Fully customized with Lateral Gas Porting, Accumulator Grooves, Smooth Finished Domes, and Contact Reduction Grooves.
Custom Features Information

Pistons are also available without all of the extras.
Email us for info.


For Roadracing & drag racing use.

Weight: 221 grams

TECH SHEET

*Cylinder Bottom Taper Information*

Please contact us for estimated production time on this special order kit

DP1170 MOD Kit

(4) Pistons
(4) Ring Sets,
(4) Wrist Pins
(8) Retainer Clips,
(1) MLS Head Gasket


$839.95


  GS1100 G/GK    2-valve
DP GK1135

Dynoman 1135cc Pistons for GS1100 G



1135cc
 74mm
10.25:1
For 1982-84 Suzuki GS1100 G & GK (2-valve engines)

Featuring smooth finished domes
and accumulator grooves.
~ Custom Features Information

Kit includes:
(4)
Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
and CFM20 Head Gasket

Weight = 230g

Custom forged piston made in the USA!

*Cylinder Bottom Taper Information*

* TECH SHEET *

Please contact us for estimated production time on this special order kit

$749.95


  GS1000

DP 73/5GS

DP73/5GS Custom Pistons for GS1000 at Dynoman

1100cc
73.5mm

+3.5mm

12:1

For 1978-81 GS1000 2-valve

Kit includes
(4)
Pistons, (4) Ring Sets, (4) Piston Pins, (8) Retainer Clips, CFM Head Gasket

Featuring Lateral Gas Porting, Smooth Finished Crowns, and Accumulator Grooves.
~ Custom Features Information

Weight: 241g

*Cylinder Bottom Taper Information*

* TECH SHEET *

Please contact us for estimated production time on this special order kit


$749.95






DP 78/GS

DP78 Piston Kit for GS1000 at Dynoman













1238cc
78mm
+8mm
12:1
For 1978-81 GS1000 2-valve
and GS1100 2-valve

Kit includes:
(4)
Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips, Cometic Copper Head Gasket, and Cometic Rubber Coated Steel Base Gasket

Features:
~ Lateral Gas Porting
~ Smooth Finished Domes
~ Accumulator Grooves
~ Custom Features Information

Weight: 273g

Sleeves also available!

* TECH SHEET *

*Cylinder Bottom Taper Information*

ALSO AVAILABLE:
79.5mm Custom Piston sets

Please contact us for estimated production time on this special order kit



$749.95





    GSX-S1000
DP 71/gsx-S1000

Dynoman Custom Pistons for Suzuki GSX-S1000


71mm
12.2:1
For Suzuki GSX-S1000 (non-USA models)

Kit includes:
(4)
Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips

Features:
~ Smooth Finished Crowns
~ Accumulator Grooves
~ Contact Reduction Grooves
~ Custom Features Information

Weight: 200 grams


Please contact us for estimated production time on this special order kit
Email for details!
    GSXr750   /   KATANA 750
DP 771/gsxr

DP771 for GSXr750 at Dynoman
Option #1     13:1 CR

771cc
74mm
13:1 or
11:1

Fits:
1988-89 GSXr750
1989-97 Katana 750


Kit #1 & #2 Includes:

(4) Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips, and MLS Head Gasket




Features Option #1:
~ Accumulator Grooves
~ Contact Reduction Grooves
~ 13:1 or 11:1 compression ratio
~ Weight: 204g (13:1 version)
     $839.95


Features Option #2:
~ Accumulator Grooves
~ Contact Reduction Grooves
~ Tulip Valve Pockets
~ 3D Econo Undercrown Milling
~ Weight 205g (11:1 version)
     $949.95


~ Custom Features Information

*Cylinder Bottom Taper Information*


TECH SHEET



Please contact us for estimated production time on this special order kit




Option #1
13:1 CR
$839.95



Option #1
11:1 CR
$839.95


Option #2
13:1 CR
$949.95


Option #2
11:1 CR
$949.95

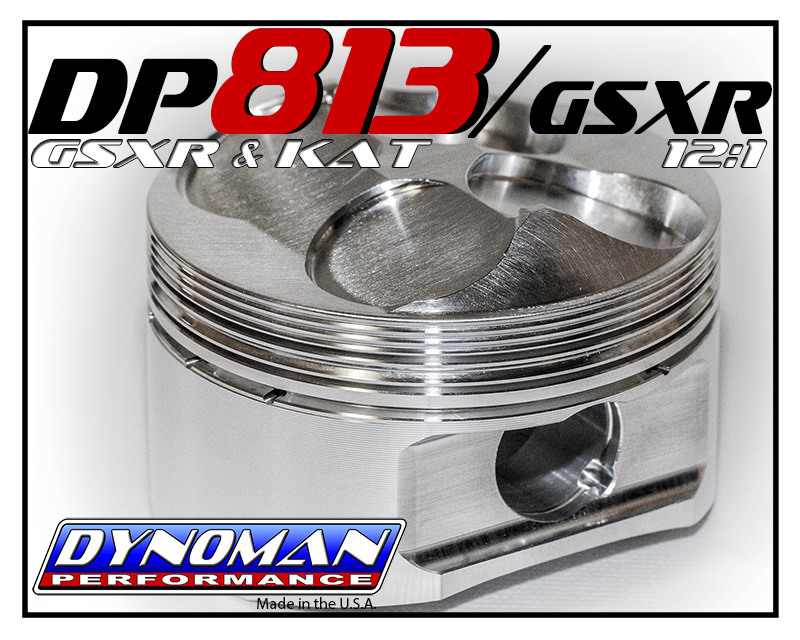

DP813/gsxr
Dynoman Katana / GSXR Piston Kit 813cc
813cc
76mm
12:1
Fits:
1988-89 GSXr750
1989-97 Katana 750


Kit Includes:


(4) Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips, and MLS Head Gasket

Features:
~ Smooth Finished Crowns
~ Accumulator Grooves
~ Contact Reduction Grooves
~ Tulip Valve Pockets available

~ Custom Features Information

*Cylinder Bottom Taper Information*



Please contact us for estimated production time on this special order kit



$839.95


  GSXr750  1992-95
DP771/gsxr92

DP771 GSXr750 Piston Kit at Dynoman
771cc
71mm
11.8:1
Fits:
1992-95 GSXr750 (water cooled)

Kit Includes:

(4) Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips, and MLS Head Gasket

Features:
~ Smooth Finished Crowns
~ Accumulator Grooves
~ TV Tulip

Weight:181g

TECH SHEET

~ Custom Features Information

*Cylinder Bottom Taper Information*



Please contact us for estimated production time on this special order kit


$839.95



  GS550   1977-82
DP 630/GS

Suzuki GS550 Big Bore Piston Kit at Dynoman 630cc







630cc
60mm
10.25:1
+4mm
For 1977-82 GS550 Suzuki
2-Valve engines

Kit includes:
(4)
Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips, and Cometic CFM20 Head Gasket


Features:
~ Smooth Finished Crowns
~ Accumulator Grooves
- Bore-in kit, re-sleeving not necessary!

Weight: 171g

TECH SHEET

~ Custom Features Information

*Cylinder Bottom Taper Information*




Please contact us for estimated production time on this special order kit



$749.95

Dynoman Performance Yamaha Piston Kits
Yamaha     YAMAHA  FZ600   1986-88
DP652/fz

Dynoman Piston Kit for FZ600



652cc
61mm
10.25:1
1986-88 FZ600 Yamaha

Kit includes:
(4)
Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips, and Cometic CFM20 Head Gasket


Features:
~ Accumulator Grooves
~ Smooth Finished Crowns

    Custom Features Information

*Cylinder Bottom Taper Information*

Weight:150g

TECH SHEET




Please contact us for estimated production time on this special order kit



$839.95




DP609/fz

Dynoman Piston Kit for FZ600 Yamaha
609cc
59mm
10.25:1
1986-88 FZ600 Yamaha

Kit includes:
(4)
Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips, and Cometic CFM20 Head Gasket


Features:
~ Accumulator Grooves
~ Smooth Finished Crowns

    Custom Features Information

*Cylinder Bottom Taper Information*

Weight: 138g

**
TECH SHEET **




Please contact us for estimated production time on this special order kit


$839.95




Yamaha  YAMAHA FZR600   1989-99

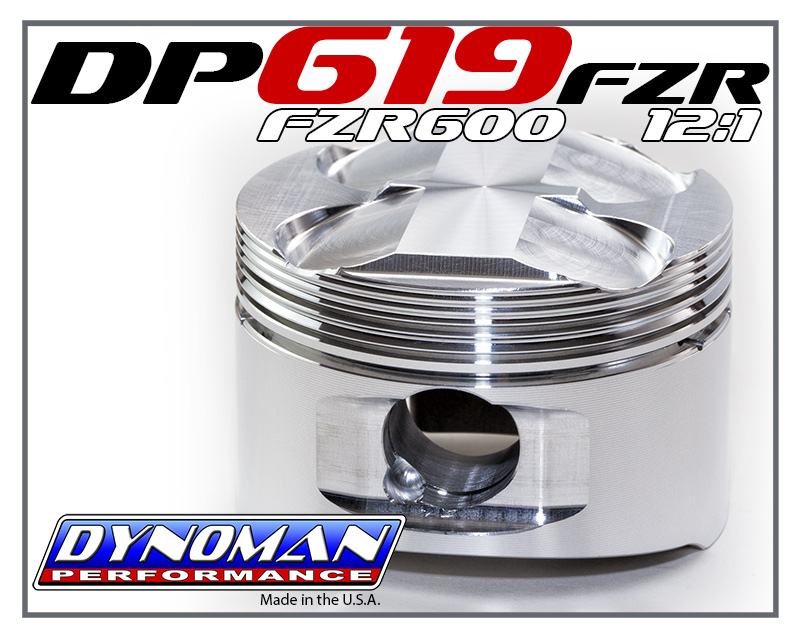

DP619/fzr

FZR600 Piston Kit DP619/fzr at Dynoman


FZR600 Piston Kit DP619/fzr at Dynoman

619cc
12:1
60mm
+1mm
1989-99 FZR600 Yamaha

Kit includes:
(4)
Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips, and C8282 MLS Head Gasket


Features:
~ Accumulator Grooves
~ Contact Reduction Grooves

~ Cylinder boring only

    Custom Features Information
    Installation Instructions

*Cylinder Bottom Taper Information*

Weight: 124g

TECH SHEET




Please contact us for estimated production time on this special order kit


$839.95


Yamaha    YAMAHA FZ750   1986-89
DP69/fz

Dynoman DP69/fz Piston Kit for FZ750




+1mm
oversize
12:1 CR
Kit includes:
(4)
Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips


Cylinder Boring Required.
Uses factory OE head gasket.


Features:
~ Accumulator Grooves
~ Contact Reduction Grooves
~ Smooth Finished Crowns

Weight: 170g

TECH SHEET





Please contact us for estimated production time on this special order kit

$839.95


Yamaha    YAMAHA FZR1000   1987-88

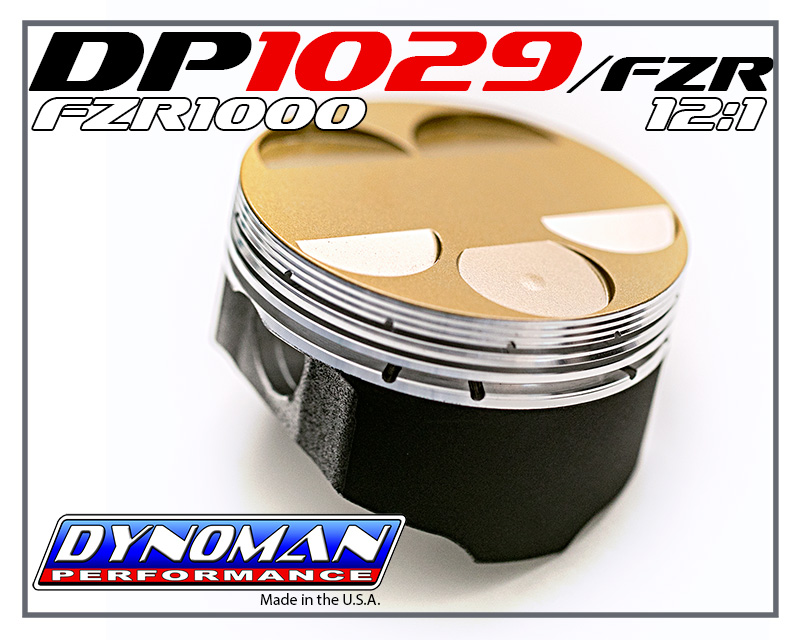

DP1029/fzr

Dynoman 1029cc Piston Kit for FZR1000

Sample shown with
optional features



1029cc
76.5mm
12:1


Piston Kit
includes:
(4)
Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips, Cometic MLS Head Gasket

Features:
~ Contact Reduction Grooves
~ Accumulator Grooves
~ Bore-in, no re-sleeving

Shown with Optional Features:
TUFF Skirt Coating,
Lateral Gas Porting,
Thermal Crown Barrier,
Under Crown Milling. Weight: 203g



Please contact us for estimated production time on this special order kit
DP1029/fzr
$839.95






Piston Kit with options as shown in photo.
$1089.95


Yamaha   YAMAHA   FZR1000  1989-96 & YZF1000 1997-98

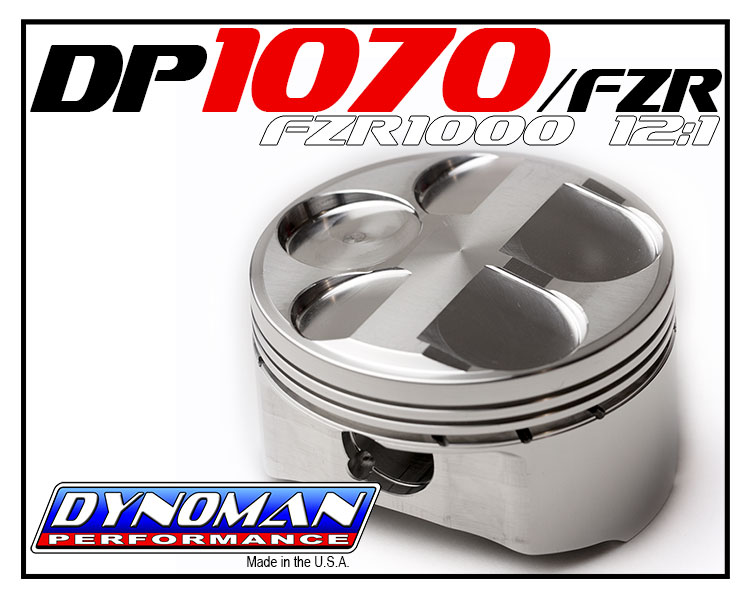

DP1070/fzr

1070cc Piston Kit for FZR1000 at Dynoman






1070cc
78mm
12:1
Piston Kit includes:
(4)
Pistons, (4) Ring Sets, (4) Piston Pins,
(8) Retainer Clips, Cometic MLS Head Gasket



Complete Kit includes:
(4) Pistons, (4) Ring Sets, (4) Piston Pins, (8) Retainer Clips, Cometic C8388 MLS Head Gasket, C8382 RCS Base Gasket, and DP Sleeves

205g forged piston weight

~ Custom Features Information

Cylinder Re-Sleeving Required
Sleeves available separately!

* TECH SHEET *

*Cylinder Bottom Taper Information*




Please contact us for estimated production time on this special order kit



PISTON KIT
$839.95




COMPLETE KIT
$1239.95


Yamaha  YAMAHA FJ1100 / 1200
DP 1188

Dynoman 1188cc Piston Kit for FJ1100

Dynoman 1188cc Piston Kit for FJ1100
1188cc
77mm

10.25:1
For FJ1100 and FJ1200
Fully customized with Lateral Gas Porting, Accumulator Grooves, Smooth Finished Domes, and Contact Reduction Grooves
~ Custom Features Information

Great for hot street riding!

Kit includes:
(4)
Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
and CFM20 Head Gasket


*Cylinder Bottom Taper Information*

* TECH SHEET *



Please contact us for estimated production time on this special order kit



$839.95

DP 1250/FJ

Dynoman 1250cc Piston Kit for FJ1200 12:1

Dynoman 1250cc Piston Kit for FJ1200 12:1

Cometic C8330 MLS Gasket at Dynoman

1250cc
79mm

12:1

+2mm
oversize
For FJ1200 Engines*

Piston Kit includes:
(4)
Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
and MLS C8330 Head Gasket

Complete Kit Includes:
(4) Pistons, (4) Ring Sets,
(4) Piston Pins, (8) Retainer Clips,
(4) Cylinder Sleeves,
MLS C8330 Head Gasket, and RCS Base Gasket

Cylinder re-sleeving required.

Custom Features Include:
- Brushed Domes
- Contact Reduction Grooves
- Accumulator Grooves
   Custom Features Information

*Cylinder Bottom Taper Information*

Weight: 274g

TECH SHEET

*
May be used on FJ1100 engines with re-sleeve,
block clean-up and FJ1200 cylinder.





Please contact us for estimated production time on this special order kit


Piston Kit
$839.95



Complete Kit
with
Sleeves, Head & Base Gaskets
$1239.95


Yamaha  YAMAHA  VMAX 1985-2007
VMax Yamaha Racing Pistons at Dynoman

VMax Yamaha Racing Pistons at Dynoman


76mm
& up
Please contact us for more information on our custom piston offerings for VMax engines!

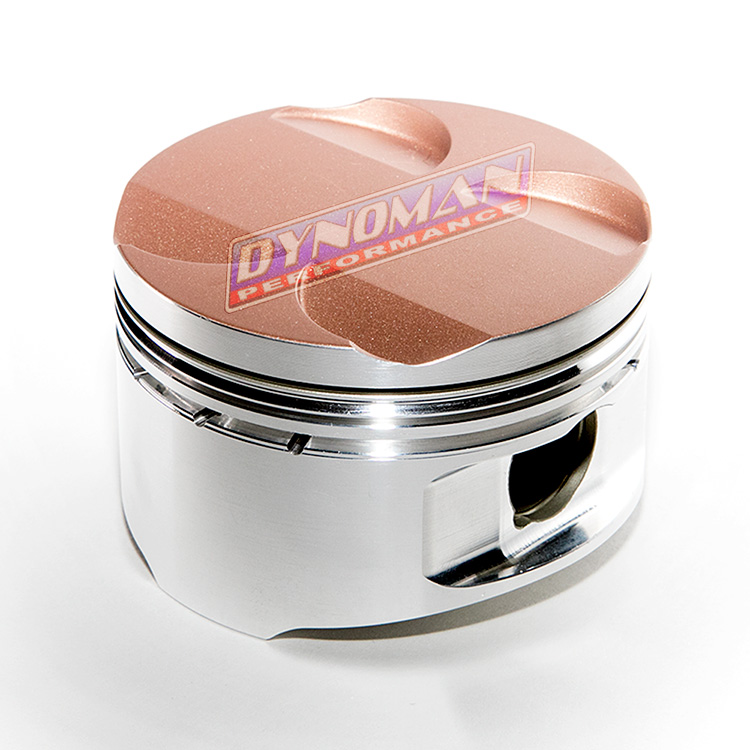

As shown, 76mm, 10.5:1 with multiple upgrades!


Dynoman Rings
Replacement Ring Sets



HONDA KAWASAKI SUZUKI YAMAHA
    CB750 SOHC
   1969-76 all, 1977-78 K
  -   1026cc
  -   1000-
  -   890-915cc
  -   836cc
  -   811cc
  -   Formula 750 62mm

   CB750 F2
   1977-78

   CB750 DOHC
   1979-82

   CB500 CB550  |  CB650
   1971-82

   NT650GT HAWK
   1988-91

   CBR900rr
   1992-95


   CBR1000F & Big One
   1991, 1993-96

   RC51 - RVT1000
   2000-06

   CBR1100xx Blackbird
   1996-2007


    GPz550/KZ550

    GPz750/KZ750
    1980-85

    ZX7r
    1991-95

    KZ1000

    1977-80

    KZ1000 J/R
    1981-83
    GS550
    1977-82   2-Valve

    GSXr750 1988-89
    GSX750 Katana 1989-97

    GSXR750 1992-95

    GS1000
    1978-79   2-Valve

    GS1100
    1981-83 4-Valve

    GS1100G / GK
    1982-84   2-Valve

     GS1150
     1984-86   4-Valve
      FZ600 1986-88

    FZR600 1989-99

    FZ750 1986-89

    FZR1000 1987-88

    FZR1000 1989-96
    YZF1000 1997-98

    FJ1100 / 1200

    VMax



Custom Piston Options at Dynoman

Available DP Custom Piston Options:

ACCUMULATOR GROOVES An accumulator groove is machined into the land between the top and second ring. It provides additional volume where residual combustion gases that have "blown by" the top ring can collect. This additional volume helps to reduce pressure between the top & second ring, thus aiding in top ring seal and minimizing ring flutter.
LATERAL GAS PORTING This process mills slots into the top of the top ring groove and provides a pathway for combustion pressure to get behind the top ring. This process helps to increase ring seal.
SMOOTH FINISHED DOMES Decreases hot spots
CONTACT REDUCTION GROOVES The purpose of machining these grooves is to reduce the amount of contact area against the cylinder wall when the piston “rocks over”. Contact reduction also serves to disrupt the flame travel into the crevice area thus helping to reduce detonation.
3D UNDER CROWN MILLING The 3D Under Crown machining process allows for uniform deck thickness, therefore creating a lighter and more durable piston. photo



"ECONOMY' UNDER CROWN MILLING Similar to above without quite as much weight reduction. An excellent balance of cost vs. result.
FULL LIGHTENING PACKAGE For maximum weight reduction

TUFF SKIRT COATING JE Pistons’ trademark coating that is a lubricating, anti-friction / anti-wear coating applied to the piston skirt only. Unlike our standard Skirt Coating, Tuff Skirt will not wear and is designed to withstand many different types of endurance applications, similar to those commonly found in NASCAR. Buildup is .0005” per surface and finished diameter of skirt should include the coating buildup.
THERMAL CROWN BARRIER The thermal barrier crown coating is applied to the top of the piston and is designed to reflect heat into the combustion chamber, thereby increasing exhaust gas velocity and greatly improving scavenging potential. The .0015” thick coating can also assist in extending piston life by decreasing the rate of thermal transfer.
TULIP VALVE POCKETS Most commonly used on Hemi and motorcycle
engines, this process leaves a raised area on plunged valve pockets to achieve maximum compression.

*Some features add production time to build.

How to make a DOME MOLD

ABOUT CYLINDER BOTTOM TAPER
It is common for the tapered lip that came in the bottom of your cylinders from the factory to be removed when installing larger bore piston kits. If the machine shop doing your boring does not taper the bottom of the sleeves after they are bored there will be a sharp edge at the bottom in place of the factory taper. It will need to be removed to make ring installation easier. You can taper the sleeves by hand with a Dremel tool or porting tool using a small 400 grit or finer sanding drum. It is also very important to wash the bores with hot soapy water to remove any sanding residue and oil them lightly when the tapering job is complete. We recommend lightweight machine oil or engine oil. Following this procedure will greatly reduced the risk of broken rings during installation!
























For your security and ours, we process
our payments
through Paypal.
PayPal Logo
PayPal Acceptance Mark


2000-2021 DynomanPerformance.com
All rights reserved. Prices, descriptions, and products subject to change without notice.

dynoman-performance@austin.rr.com
