Carrillo Rods at Dynoman Performance



Since 1963, Carrillo has been the Choice of Champions for Performance Rods!
HONDA  |  KAWASAKI  |  SUZUKI  |  YAMAHA  | DUCATI  |  TRIUMPH  |  NORTON  |  HARLEY

Made in the USAUpdated 1/2/2018

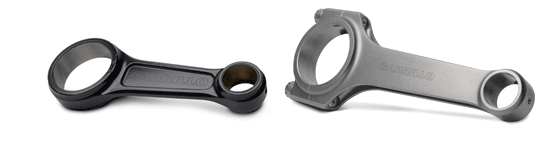

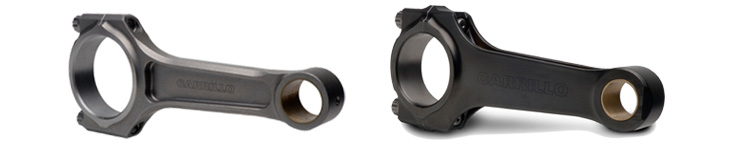

Fatigue is the major cause of connecting rod failure. CP-CARRILLO RODS utilize proprietary steel and are manufactured and forged to their own custom specifications. After experimenting with virtually every other reasonable material, they have found this chromium / nickel / vanadium / molybdenum FORGED alloy to be the best product to meet their stringent requirements for strength and durability.

Carrillo H-Beam Chrome Moly Steel Rods are designed with the serious enthusiast and racer in mind. Each rod is balanced and shot peened to achieve the ultimate in strength and fatigue properties to endure the most challenging conditions during high-performance competition. Made in the U.S.A.

CUSTOM RODS
If we don't have what you need, we can make it!
Email Dynoman for prices and availability.


    HONDA

CB350F/CB400F  (custom built*)
Usually in stock and ready to ship!

Carrillo Rods for CB400F at Dynoman

Carrillo Rods for CB400F at Dynoman


all years

Available with OE standard 13mm pins or oversized 15mm (special order).
Suggested Retail $1638.00
Please Add to Cart for DP Price


PRO-H BEAM RODS
1/4" CARR Bolts
*

*Dynoman recommends torquing 1/4” CARR rod bolts using an Inch-Pound torque wrench for best results and accuracy
CB550 / CB500 (custom built*)
Usually in stock and ready to ship!

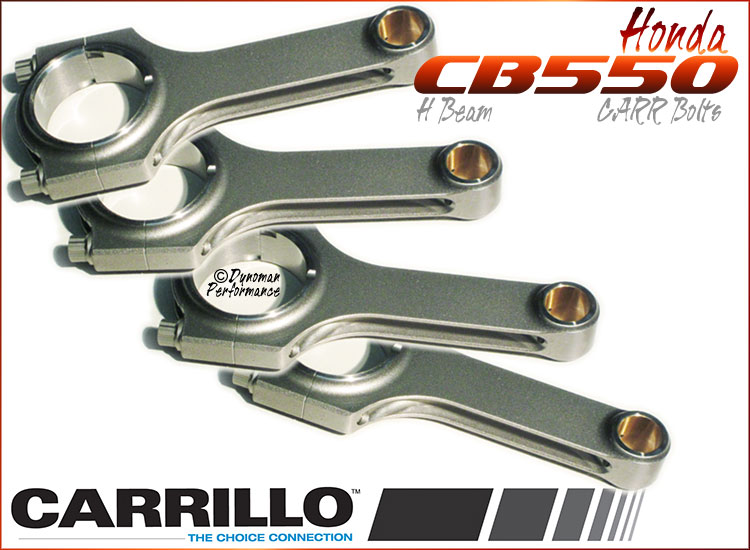

Carrillo Rods for CB550 Honda at Dynoman

all years
Suggested Retail $1638.00
Please Add to Cart for DP Price


PRO-H BEAM
1/4" CARR Bolts

*Dynoman recommends torquing 1/4” CARR rod bolts using an Inch-Pound torque wrench for best results and accuracy


CBR600F2 (custom built*)

Carrillo Rods at Dynoman Performance

all years PRO-H BEAM
1/4" CARR Bolts
email for information


CBR600F3 and CBR600F4/F4I

Carrillo Rods for CBR600F4 at Dynoman

1995-98 F3

1999-2006 F4
Suggested Retail $1168.00
Please Add to Cart for DP Price


PRO-H BEAM
1/4" CARR Bolts
Total Weight: 248g
17mm Wrist Pin
CBR600rr

Carrillo rods for CBR600rr at Dynoman

2007-15
Suggested Retail $1168.00
Please Add to Cart for DP Price


PRO-H BEAM
1/4" CARR Bolts
Total Weight: 207g
15mm Wrist Pin
CBR600rr

Carrillo Rods at Dynoman for CBR600rr Honda

2003-06
Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM
1/4" CARR Bolts
Total Weight: 246g
16mm Wrist Pin




NT650GT HAWK (custom built*)
Please allow 3 to 6 week production time

Carrillo Rods for NT650 at Dynoman

1988-90
Suggested Retail $802.00
Please Add to Cart for DP Price

PRO-H BEAM
CARR Bolts



CB750 SOHC
In stock and ready to ship!


Also available with custom 17mm* wrist pin,
see below
.

Carrillo Rods for CB750 SOHC at Dynoman


1969-78
All models F & K
15mm Pin (oe size)
Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM
CARR BOLTS

All of our in stock Carrillo rods feature
the finest CARR bolts.

CARR vs WMC
The WMC bolts cannot be torqued repeatedly like the CARR bolts and do not have the strength of the CARRs either. That is why we use and recommend the CARR bolts!

The less expensive WMC bolts (H-11 steel) are available as well and are less expensive, just ask us for a quote for comparison.

CB750 SOHC  with 17mm PINS
(custom built*)

Requires custom pistons, please email us for piston details.


Carrillo Rods for CB750 SOHC with 17mm pins at Dynoman

Carrillo Rods for CB750 SOHC with 17mm pins at Dynoman


1969-78
All models F & K
17mm Pin!

Suggested Retail $1638.00

Please Add to Cart for DP Price

17mm Custom Pin Size

PRO-H BEAM
CARR BOLTS


CB750 DOHC (custom built*)
Please allow 4 to 6 week production time

Carrillo Rods for CB750 DOHC at Dynoman



1979-82
Suggested Retail $1638.00
Please Add to Cart for DP Price

PRO-H BEAM
8mm CARR Bolts
CB900F DOHC (custom built*)
Please allow 4 to 6 week production time

Carrillo Rods for CB900F at Dynoman


1981-82
Suggested Retail $1638.00
Please Add to Cart for DP Price

PRO-H BEAM
8mm CARR Bolts


CBR900RR

Carrillo Rods at Dynoman Performance

1996-99 PRO-H BEAM
email for information

CBR929

Carrillo Rods at Dynoman Performance

2000-01 PRO-H BEAM
email for information

CBR954RR

Carrillo Rods at Dynoman Performance

2002-03 PRO-H BEAM
email for information

CBR1000rr

Carrillo Rods at Dynoman Performance

2004-07
Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM
8mm CARR Bolts
Total Weight: 285
g
17mm Wrist Pin
CBR1000rr

Carrillo Rods at Dynoman Performance


2008-15
Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM
8mm CARR Bolts
Total Weight: 285g
17mm Wrist Pin
CB1100F DOHC (custom built*)
Usually in stock and ready to ship!

CB1100F Carrillo Rods at Dynoman


1983
Suggested Retail $1638.00
Please Add to Cart for DP Price

PRO-H BEAM
CARR Bolts
CBX1100 (6-CYL) Custom-Built
Please allow 4 to 6 week production time

Carrillo Rods for Honda CBX at Dynoman

1979-82
Suggested Retail $2457.00
Please Add to Cart for DP Price

PRO-H BEAM
CARR Bolts

VTR1000F SuperHawk (custom built*)
Custom built, please allow 4 to 6 week production time


Carrillo Rods for Superhawk at Dynoman Performance
1997-2005
Suggested Retail $802.00
Please Add to Cart for DP Price

PRO-H BEAM
CARR Bolts
RC51 / RVT1000r (custom built*)
Custom built, please allow 4 to 6 week production time

Carrillo Rods for Honda RC51 at Dynoman
2000-06
Suggested Retail $812.00
Please Add to Cart for DP Price

H-BEAM

with
M8 CARR Bolts
With Optional Oiling Holes

RC51 / RVT1000r (custom built*)
Custom built, please allow 4 to 6 week production time

Same as above WITHOUT
optional oiling holes


Carrillo Rods for Honda RC51 at Dynoman
2000-06
Suggested Retail $802.00


Please Add to Cart for DP Price
PRO
-H Beam with
M8 CARR Bolts
Without optional oiling holes

CBR1100XX BLACKBIRD

Carrillo Rods at Dynoman Performance

1997-2003
Suggested Retail $1168.00

Please Add to Cart for DP Price
PRO H-BEAM
8mm CARR Bolts
Total Weight: 368g
19mm Wrist Pin


CP- Carrillo Rods at Dynoman Performance
    KAWASAKI
EX650 / ER6N (TWIN)

Carrillo Rods at Dynoman Performance

2006-16 PRO-H BEAM
8mm CARR Bolts

email to price and order
ZX-6R

Carrillo Rods at Dynoman Performance

1995-98 PRO-H BEAM
CARR Bolts

email to price and order

ZX6R / ZZR600

Carrillo Rods at Dynoman Performance
2000-01 ZX6r
2002-06 ZX6R 636
2005-08 ZZR600


Suggested Retail $1168.00

Please Add to Cart for DP Price

PRO-H BEAM
8mm CARR Bolts
Total Weight: 248g
16mm Wrist Pin

Also available with 1/4" CARR Bolts
ZX6RR

Carrillo Rods at Dynoman Performance
2004-06 ZX6RR

Suggested Retail $1168.00

Please Add to Cart for DP Price


PRO-H BEAM
1/4" CARR Bolts
Total Weight: 237g
16mm Wrist Pin
ZX6R

Carrillo Rods at Dynoman Performance
2007-12 ZX6R
Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM
1/4" CARR Bolts
Total Weight: 208g
15mm Wrist Pin

ZX6R (636)

Carrillo Rods at Dynoman Performance

2013-17
Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM
Light 8mm CARR Bolts
Total Weight: 258g
16mm Wrist Pin

Also available with Light 1/4" CARR Bolts

ZX7r

Carrillo Rods at Dynoman Performance

1996-2002
Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM

1/4" CARR Bolts

Total Weight: 285g
18mm Wrist Pin

ZX10R

Carrillo Rods at Dynoman Performance
2004-06

Suggested Retail $1168.00

Please Add to Cart for DP Price

PRO-H BEAM

8mm CARR Bolts

Total Weight: 305g
17mm Wrist Pin

ZX10R

Carrillo Rods at Dynoman Performance

2007-2017

Suggested Retail $1168.00

Please Add to Cart for DP Price

PRO-H BEAM

8mm CARR Bolts

Total Weight: 305g
17mm Wrist Pin
ZX-11
ZZR-1100
Carrillo Rods for ZX-11 at Dynoman

Carrillo Rods for ZX11 at Dynoman
1990-1997
Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM
8mm CARR Bolts

Total Weight: 347g
18mm Wrist Pin
ZX12

Carrillo Rods at Dynoman Performance
2000-06

Suggested Retail $1168.00

Please Add to Cart for DP Price

PRO-H BEAM
8mm CARR Bolts

Total Weight: 350g
21mm Wrist Pin

Also available in PRO-A with WMC bolts
ZX14

Carrillo Rods at Dynoman Performance
2006-11

Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM
8mm CARR Bolts

Total Weight: 359g
20mm Wrist Pin

Also available in Turbo / Stroker piston
ZX14

Carrillo Rods at Dynoman Performance
2012-15

Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM
1/4" CARR Bolts

Total Weight: 359g
20mm Wrist Pin

CP- Carrillo Rods at Dynoman Performance
    SUZUKI
GSXR1300 HAYABUSA
99-04 H-BEAM
email to price and order

GSXR1300 HAYABUSA
99-04 A-BEAM
email to price and order

GSXR1100
(1052 crank - long rod)
THRU 87, 93-97 H-BEAM
email to price and order

GSXR, KATANA, BANDIT
(1127 crank - short rod, 1100/1200)
Carrillo Rods for GSXR1100 at Dynoman
88 & later H-BEAM
email to price and order
GSXR, KATANA, BANDIT
(1127 crank - short rod, 1100/1200)
88 & later A-BEAM
email to price and order


GSXR1000
00-03 H-BEAM
email to price and order



GS1000
Custom Rods, 4 to 6 weeks production time.

2-Valve engines

Carrillo Rods for GS1000 Suzuki at Dynoman


78-79
Suggested Retail $1380.00
Please Add to Cart for DP Price

1-PIECE PRO-H BEAM


GSXR750
2000-05

Suggested Retail $1168.00

Please Add to Cart for DP Price

PRO-H BEAM
8mm CARR Bolts

Total Weight: 274g
15mm Wrist Pin

GSXR600 2004-14

Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO-H BEAM
8mm CARR Bolts

Total Weight: 250g
14mm Wrist Pin

Also available with 1/4" CARR Bolts

 CP- Carrillo Rods at Dynoman Performance
   YAMAHA
FZR600  (custom built*)
Carrillo Rods for Yamaha FZR600 at Dynoman
1989-99
Suggested Retail $1638.00
Please Add to Cart for DP Price

PRO-H BEAM
with
CARR Bolts
XS650 (TWIN) (custom-built)

Carrillo Rods for Yamaha XS650 at Dynoman

Carrillo Rods for Yamaha XS650 at Dynoman
all PRO-H BEAM RODS
R6
99-00 H-BEAM
R1
99-02 H-BEAM
FZR1000 1989-95
GTS1000 1993-94
YZF1000r 1997
Carrillo FZR1000 Rods at Dynoman


Suggested Retail $1168.00
Please Add to Cart for DP Price

PRO H-BEAM
8mm CARR Bolts

New design, no case
modifications necessary!
FJ1100/1200
all H-BEAM
FJ1100/1200
all A-BEAM
V-MAX
all H-BEAM
V-MAX
all A-BEAM
 CP- Carrillo Rods at Dynoman Performance
   DUCATI
746 / 851 / 916
20mm pin - can be made as 21mm piston pin
#DU-851<-8M4882S

  H-BEAM
8mm CARR Bolts
900 Bevel Drive
#DU-900>-05709N
Carrillo Rods for Ducati at Dynoman

  H-BEAM
PANTAH / 750SS
#DU-PANT>-8M4882S
  H-BEAM
8mm CARR Bolts
1198
#DU-1198>-9M4822S

996 / 998 / 999 / 1098
#DU-998>-8M4882S

Carrillo Rods for Ducati at Dynoman

  H-BEAM
8mm CARR Bolts

900SS / 906-1 / 907 / 1000DS
#DU-906-1>-8M5118S
  H-BEAM
8mm CARR Bolts


     TRIUMPH
650 TWIN T120     (Custom-built)



  H-BEAM
CARR or WMC Bolts
TRIDENT T150
#TR-TRD>-55750S

  H-BEAM
750 TWIN T140   (Custom-built)

Carrillo Custom Triumph Rods at Dynoman


  H-BEAM
CARR or WMC Bolts
DAYTONA 500  (Custom-built)

Carrillo Rods for Triumph Daytone at Dynoman

  H-BEAM
CARR Bolts

     NORTON
COMMANDO 750/850
#NO-COM>-55875S

  H-BEAM

     HARLEY
V-ROD - VRSCA

02-04

H-BEAM
SPORTSTER 1200   H-BEAM
CURRENT BIG TWIN   H-BEAM
8" center-to-center BIG TWIN   H-BEAM
*Some applications may use WMC rod bolts






* CUSTOM BUILT Rods
We try to keep many of the custom rods in stock, however if we are sold-out, production time is 4 to 6 weeks.





































For your security and ours, we process
our payments
through Paypal.
PayPal Logo
PayPal Acceptance Mark


2000-17 DynomanPerformance.com
All rights reserved. Prices, descriptions, and products subject to change without notice.

dynoman-performance@austin.rr.com
