JE PISTONS - SUZUKI
Industry leader in forged racing pistons!

1999-2007 GSX 1300R
2008-2009 GSX 1300R
1984-1985 GS 1150
1981-1983 GS 1100
1986-1988 GSXR 1100
1989-1992 GSXR 1100/Bandit

1993-1998 GSXR 1100W
2001-2004 GSXR 1000
2005-2008 GSXR 1000
2009 GSXR 1000
1994-1997 RF 900
2000-2003 GSXR 750

1990-1992 GSXR 750
1993-1995 GSXR 750W
1999-2006 SV 650
2001-2003 GSXR 600
2004-05 GSXR 600
2006-2007 GSXR 600

2008-2009 GSX 1300R Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Please email Dynoman for price and availability

1340cc	81mm	STD	274089	9.0:1	238	Round	JG1001-3189	JC8656	Deglaze Only

1340cc	81mm	STD	284734	13.0:1	223	Round	JG1001-3189	JC8656	Deglaze Only

1340cc	81mm	STD	274085	13.5:1	225	Round	JG1001-3189	JC8656	Deglaze Only

1407cc	83mm	+2mm	274090	9.0:1	250	Round	JG1001-3268	JC8497	Bore & Replate

1407cc	83mm	+2mm	274086	13.5:1	225	FSR	JG1001-3268	JC8497	Bore & Replate

1441cc	84mm	+3mm	274087	13.5:1	234	FSR	JG1001-3287	JC8621	Bore & Replate

1441cc	84mm	+3mm	274088	14.5:1	228	FSR	JG1001-3287	JC8621	Bore & Replate

1476cc	85mm	+4mm	284735	13.5:1	239	FSR	JG1001-3346	JC8622	Bore & Replate

1476cc	85mm	+4mm	284736	14.5:1	238	FSR	JG1001-3346	JC8622	Bore & Replate

1999-2007 GSX 1300R Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Sleeve #	Please email Dynoman for price and availability

1299cc	81mm	STD	262286	13.5:1	241	Round	JG1001-3189	Deglaze

1299cc	81mm	STD	167679	12.3:1	234	Round	XG8100	Deglaze Only

1299cc	81mm	STD	213918*	8.7:1	222	Round	XG8100	Deglaze Only

1363cc	83mm	+2mm	167680	12.5:1	248	Round	XG8300	Bore & Plate

1363cc	83mm	+2mm	222102*	8.7:1	234	Round	JG1001-3268	Bore & Plate

1397cc	84mm	+3mm	172945	12.8:1	244	Round	JG1001-3307	Bore & Plate

1397cc	84mm	+3mm	262287	13.5:1	234	FSR	JG1001-3307	Bore & Replate

1429cc	85mm	+4mm	222101	12.5:1	249	Round	JG1001-3346	Bore & Plate

1429cc	85mm	+4mm	262288	13.5:1	241	FSR	JG1001-3346	Bore & Replate

1984-1985 GS 1150 Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

1327cc	80mm	+6mm	134355	11.0:1	232	Round	XC8000	JC8168	JE3450	M

1327cc	80mm	+6mm	134358	13.5:1	243	Round	XC8000	JC8168	JE3450	L

1394cc	82mm	+8mm	134356	11.5:1	249	Round	XC8200	JC8169	JE3450	L

1428cc	83mm	+9mm	134357	11.7:1	260	Round	XC8300	JC8170	JE3450	L

1428cc	83mm	+9mm	140457*	12.0:1	296	Round	XC8300	JC8170	JE3450	Y,M

1428cc	83mm	+9mm	134360	13.5:1	256	Round	XC8300	JC8170	JE3450	M

1500cc	85mm	+11mm	138329	14.0:1	263	Round	XC8500	JC8187	JE3600	M

1981-1983 GS 1100 Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

1134cc	74mm	+2mm	125491	10.25:1	210	Round	XC7400	JC8164	Bore & Hone	M

1134cc	74mm	+2mm	130298	13.5:1	214	Round	XC7400	JC8164	Bore & Hone

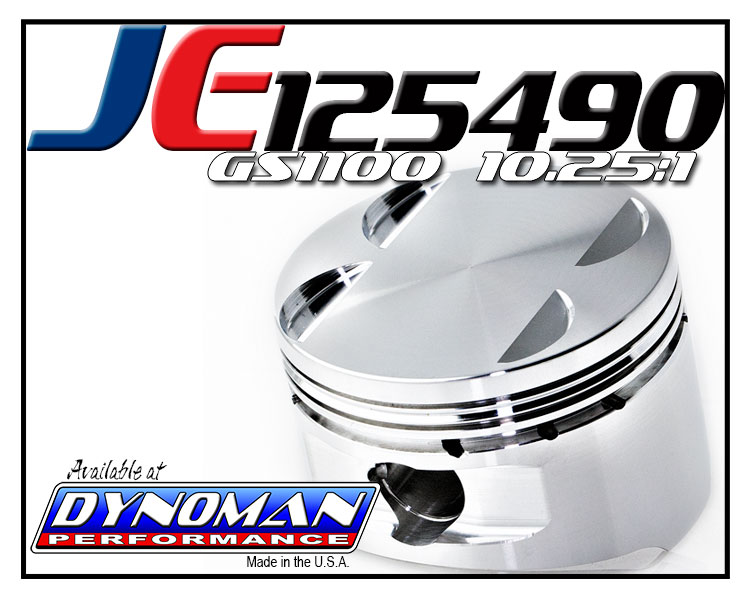

1170cc	75mm	+3mm	125490	10.25:1	211	Round	XC7500	JC8031	Bore & Hone

1197cc	76mm	+4mm	128323	10.25:1	222	Round	XC7600	JC8165	JE3275	L

1197cc	76mm	+4mm	128820	13.5:1	226	Round	XC7600	JC8165	JE3275	L

1260cc	78mm	+6mm	128324	10.5:1	232	Round	XC7800	JC8166	JE3275	M

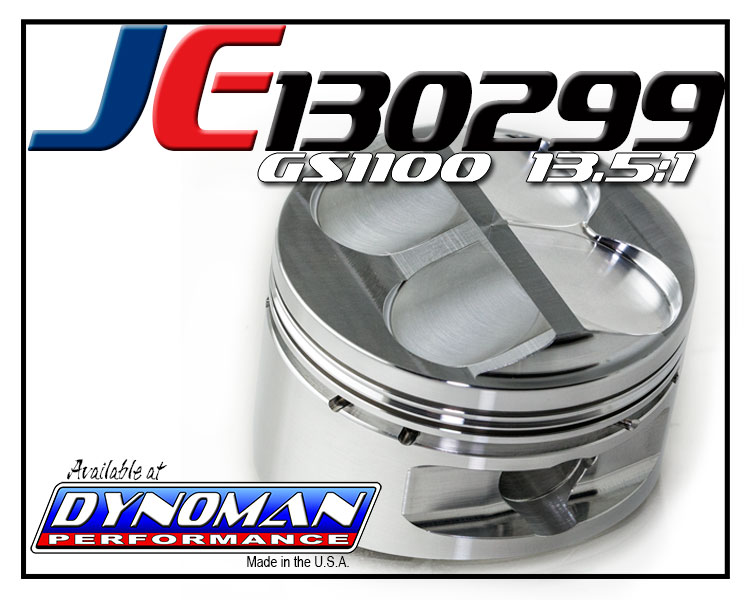

1260cc	78mm	+6mm	130299	13.5:1	239	Round	XC7800	JC8166	JE3275	L

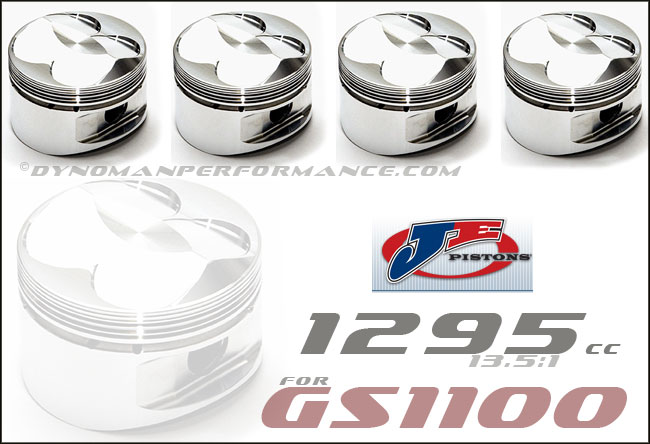

1295cc	79mm	+7mm	127402	13.5:1	227	Round	XC7900	JC8167	JE3350	M

1327cc	80mm	+8mm	129310	11.0:1	237	Round	XC8000	JC8168	JE3350	M

1327cc	80mm	+8mm	130300	13.5:1	239	Round	XC8000	JC8168	JE3350	L

1360cc	81mm	+9mm	129311	11.25:1	240	Round	XC8100	JC8605	JE3450	L

1394cc	82mm	+10mm	129312	11.5:1	250	Round	XC8200	JC8169	JE3450	L

1394cc	82mm	+10mm	130301	13.5:1	247	Round	XC8200	JC8169	JE3450	M

1428cc	83mm	+11mm	129313	11.7:1	261	Round	XC8300	JC8170	JE3450	M

1428cc	83mm	+11mm	135635*	12.0:1	302	Round	XC8300	JC8170	JE3450	Y

1428cc	83mm	+11mm	130302	13.5:1	248	Round	XC8300	JC8170	JE3450

1463cc	84mm	+12mm	129314	11.8:1	267	Round	XC8400	JC8035	JE3600	L

1500cc	85mm	+13mm	129315	12.0:1	270	Round	XC8500	JC8187	JE3600	M

1500cc	85mm	+13mm	138271	14.0:1	272	Round	XC8500	JC8187	JE3600

1500cc	85mm	+13mm	190680*	12.5:1	299	Round	XC8500	JC8187	JE3600

1570cc	87mm	+14mm	146085	15.0:1	298	Round	XC8700	JC8171	JE3600	M

1986-1988 GSXR1100 Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #

1109cc	78mm	+2mm	129855	13.0:1	232	Round	XC7800	JC8277	Bore & Hone

1166cc	80mm	+4mm	127641	13.0:1	225	Round	XC8000	JC8321	Bore & Hone

1180cc	80.5mm	+4.5mm	155544	13.0:1	233	Round	XC8050	JC8321	JE3450

1196cc	81mm	+5mm	127642	13.0:1	231	Round	XC8100	JC8279	JE3450

1225cc	82mm	+6mm	128885	13.0:1	244	Round	XC8200	JC8391	JE3450

1255cc	83mm	+7mm	127643	13.0:1	236	Round	XC8300	JC8323	JE3450

1255cc	83mm	+7mm	132495	15.0:1	232	Round	XC8300	JC8323	JE3450

1316cc	85mm	+9mm	127644	13.0:1	244	Round	XC8500	JC8340	JE3550-4

1347cc	86mm	+10m	128490	m 13:1	261	Round	XC8600	JC860	4 JE3550-4

1989-1992 GSXR 1100/Bandit Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

1127cc	78mm	STD	129855	13.0:1	232	Round	XC7800	JC8322	Deglaze Only	M

1186cc	80mm	+2mm	127641	13.0:1	234	Round	XC8000	JC8368	Bore & Hone	M

1201cc	80.5mm	+2.5mm	155544	13.0:1	233	Round	XC8050	JC8279	Bore & Hone	M

1216cc	81mm	+3mm	127642	13.0:1	234	Round	XC8100	JC8279	Bore & Hone

1216cc	81mm	+3mm	201165	11.0:1	235	Round	XC8100	JC8279	Bore & Hone

1246cc	82mm	+4mm	128885	13.0:1	238	Round	XC8200	JC8391	JE3450	M

1277cc	83mm	+5mm	127643	13.0:1	236	Round	XC8300	JC8323	JE3450	M

1277cc	83mm	+5mm	132495	15.0:1	240	Round	XC8300	JC8323	JE3450	L

1340cc	85mm	+7mm	127644	13.0:1	251	Round	XC8500	JC8340	JE3550-4	M

1340cc	85mm	+7mm	130894	15.0:1	248	Round	XC8500	JC8340	JE3550-4	L

1371cc	86mm	+8mm	127645	13.0:1	258	Round	XC8600	JC8604	JE3550-4

1371cc	86mm	+8mm	128490	13.5:1	266	Round	XC8600	JC8604	JE3550-4

1993-1998 GSXR 1100W Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

1117cc	77mm	+1.5mm	131367	12.3:1	219	Round	XG7700	JC8280	Bore & Hone	M

1146cc	78mm	+2.5mm	155930	12.8:1	227	Round	XG7800	JC8478	Bore & Hone

1195cc	79.5mm	+4mm	129682	13.0:1	222	Round	XG7950	JC8281	JE3290	M

2001-2004 GSXR 1000 Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

988cc	73mm	STD	222105*	9.8:1	182	Round	XA7300	JC0001	Deglaze Only	**,T

988cc	73mm	STD	215817	13.5:1	156	FSR	XA7300	JC8574	Deglaze Only

1042cc	75mm	+2mm	213919	13.5:1	162	FSR	XG7500	JC8214	Bore & Replate

1070cc	76mm	+3mm	192322	13.5:1	180	Round	XG7600	JC8602	Bore & Replate

1070cc	76mm	+3mm	221407	13.5:1	177	FSR	XG7600	JC8602	Bore & Replate

2005-2008 GSXR 1000 Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

998cc	73.4mm	STD	254555*	10.1:1	179	FSR	OEM (NOT INCL)	JC0001	Deglaze Only	**,T

998cc	73.4mm	STD	247628	13.8:1	158	FSR	OEM (NOT INCL)	email	Deglaze Only

1043cc	75mm	+1.6mm	247629	13.5:1	167	FSR	XG7500	email	Bore & Replate

1070cc	76mm	+2.6mm	247631	13.5:1	173	FSR	XG7600	email	Bore & Replate

2009 GSXR 1000 Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

999cc	74.5mm	STD	284700	10.1:1	NEW	FSR	XG7450	email	Deglaze Only	T

999cc	74.5mm	STD	284701	13.8:1	NEW	FSR	XG7450	email	Deglaze Only

1053cc	76.5mm	+2mm	284703	13.8:1	NEW	FSR	XG7650	email

1994-1997 RF900 Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

990cc	75mm	+2mm	146197	12.5:1	189	Round	XC7500	JC8337	Bore & Hone	L

2000-2003 GSXR 750 Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

812cc	75mm	+3mm	222103	12.5:1	172	FSR	XG7500	JC8214	Bore & Replate	L

1990-1992 GSXR 750 Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

907cc	77mm	+7mm	157593	12.0:1	211	Round	XC7700	JC8464	JE3200S	L

955cc	79mm	+9mm	157594	12.0:1	223	Round	XC7900	JC8463	JE3275*	M

1993-1995 GSXR 750W Please email Dynoman for price and availability
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Footnote

907cc	77mm	+7mm	138983	13.0:1	196	Round	XG7700	JC8338	JE3200S	M

1999-2006 SV 650 Please email Dynoman for price and availability
Piston Kit #	Disp.	Bore Size	Over Size	Comp Ratio	Gram Wt (g)	Skirt Style	Gasket #

169253	677cc	83mm	+2mm	13.0:1	239	Round

284698	677cc	83mm	+2mm	13.0:1	NEW	FSR	JC8600

2001-2003 GSXR 600 Std Bore: 67mm Please email Dynoman for price and availability
Piston Kit #	Disp.	Bore Size	Over Size	Comp Ratio	Gram Wt (g)	Skirt Style	Gasket #

222107	617cc	68mm	+1mm	12.5:1	137	FSR	JC8644

222106	636cc	69mm	+2mm	13.0.1	141	FSR	JC8645	L

2004-2005 GSXR 600 Std Bore: 67mm Please email Dynoman for price and availability
Piston Kit #	Disp.	Bore Size	Over Size	Comp Ratio	Gram Wt (g)	Skirt Style	Gasket #

222386	636cc	69mm	+2mm	13.0.1	134	FSR	email	L

2006-2007 GSXR600 Std Bore: 67mm Please email Dynoman for price and availability
Piston Kit #	Disp.	Bore Size	Over Size	Comp Ratio	Gram Wt (g)	Skirt Style	Gasket #

255720	636cc	69mm	+2mm	13.0:1	143	FSR	email

Footnotes:

A	fits 3.480 and 3.500 stroke
B	Oil Rail Support is Included
C	.927 Pin Diameter
D	.912 Pin Diameter
E	.990 wrist pin
F	Indicates 1.040 Pin Diameter
H	Indicates 1.094 Pin Diameter
J	Indicates 3mm Oil Ring
K	.945 Pin Diameter
L	Limited Quantities available
M	Made To Order
P	.975 Pin Diameter
S	Solid dome design
W	428 Crank Shaft
X	angle milled heads
