HEAD & BASE GASKETS Dynoman Performance Engine Gaskets BY COMETIC
MADE IN THE USA!

HONDA	KAWASAKI	SUZUKI	YAMAHA
CB400F CB500/550/650 CBR600 F2, F3, rr NT650 Hawk CB750 SOHC - HEAD CB750 SOHC - BASE CB750 DOHC CB900 DOHC CB1100F RC51/RVT1000r	GPZ550 1981-85 KZ750/GPz750/Turbo ZX-7 1991-95 KZ900/1000/Z1 ZX-9 ZX900/1000 Ninja KZ1000J/GPz1100 ZX11C & D/GPZ1100 late ZRX1200	GSXr750/1000 GS750 GS1000 GS1100	FJ600 / FZ600 FZR600 YZF1000/FZR XS1100	About MLS About CFM-20 About Rubber Coated Steel RCS Vesrah Gasket Sets

HONDA
1969-78 Honda CB750 K&F HEAD Gaskets BASE Gaskets Vesrah Complete Gasket sets
CB400F 1975-76

#DP H-56-CFM043 Head Gasket 56mm -- CFM-20 -- .043" $54.34 Please allow 2 to 3 weeks production time on this special order item.
CB500/550 1971-78 & CB650 79-82
BORE SIZE: 60mm \| 61mm \| 62mm \| \| 63mm \| 64mm \| Base Gaskets
60mm HEAD GASKET CFM-20 .043" Thick For 59 to 60mm bore size. For use with DP572 Kits #DP H-60-CFM043 $54.34
60mm HEAD GASKET CFM-20 .059" Thick For 59 to 60mm bore size. May be used with DP572 Kits Will alter compression ratio. #DP H-60-CFM059 $54.34
60mm HEAD GASKET Multi-Layer Steel (MLS) .030" Thick For 59 to 60mm bore size. May be used with DP572 Kits, Will alter compression ration, please check clearances carefully. #DP H-60-MLS030 $79.95
60mm HEAD GASKET Multi-Layer Steel (MLS) .040" Thick For 59 to 60mm bore size. For use with DP572 Kits #C8825 $79.95
60mm HEAD GASKET Multi-Layer Steel (MLS) .060" Thick For 59 to 60mm bore size. May be used with DP572 Kits Will alter compression ratio. #DP H-60-MLS060 $89.95

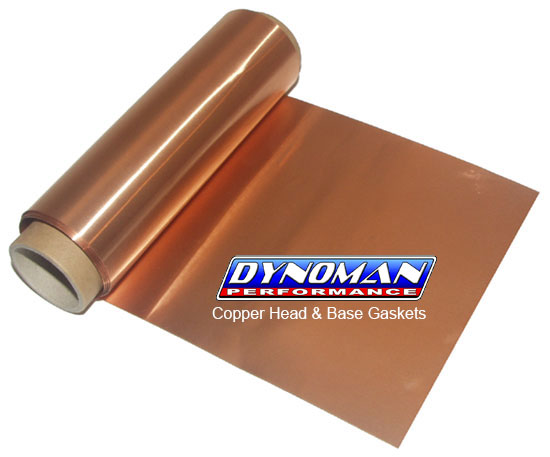

60mm HEAD GASKET Copper, Dead Soft .032" Thick For 59 to 60mm bore size May be used with DP572 Kits Will alter compression ration, please check clearances carefully. #DP H-60-COP032 $69.95
60mm HEAD GASKET Copper, Dead Soft .043" Thick For 59 to 60mm bore size May be used with DP572 Kits #DP H-60-COP043 $69.95
60mm HEAD GASKET Copper, Dead Soft .050" Thick For 59 to 60mm bore size May be used with DP572 Kits Will alter compression ration #DP H-60-COP050 $69.95
CB500 / 550 / 650 continued... 61mm
61mm HEAD GASKET CFM-20 .043" Thick 61mm bore size For use with DP592 Kits #DP H-61-CFM043 $54.34
61mm HEAD GASKET CFM-20 .059" Thick 61mm bore size May be used with DP592 Kits, Will alter compression ration #DP H-61-CFM059 $54.34
61mm HEAD GASKET Multi-Layer Steel (MLS) .030" Thick For 61mm bore size May be used with DP592 Kits , Will alter compression ration, please check clearances carefully. #DP H-61-MLS030 $79.95
61mm HEAD GASKET Multi-Layer Steel (MLS) .036" Thick For 61mm bore size May be used with DP592 Kits , Will alter compression ration, please check clearances carefully. #DP H-61-MLS036 $79.95
61mm HEAD GASKET Multi-Layer Steel (MLS) .040" Thick For 61mm bore size For use with DP592 Kits #C8826 $79.95
61mm HEAD GASKET Multi-Layer Steel (MLS) .060" Thick For 61mm bore size May be used with DP592 Kits Will alter compression ratio. #DP H-61-MLS060 $89.95
61mm HEAD GASKET Copper, Dead Soft .032" Thick For 61mm bore size May be used with DP592 Kits Will alter compression ration, please check clearances carefully. #DP H-61-COP032 $69.95

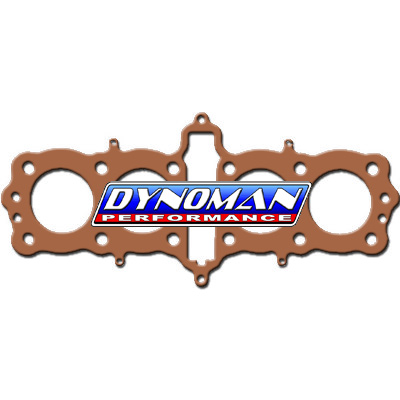

61mm HEAD GASKET Copper, Dead Soft .043" Thick For 61mm bore size May be used with DP592 Kits #DP H-61-COP043 $69.95
61mm HEAD GASKET Copper, Dead Soft .050" Thick For 61mm bore size May be used with DP592 Kits Will alter compression ration. #DP H-61-COP050 $69.95

CB500 / 550 / 650 continued... 62mm
62mm HEAD GASKET CFM-20 .043" Thick For 62mm bore size For use with with DP674 Kits 1979-82 CB650 Honda #DP H-62-CFM043 $54.34
62mm HEAD GASKET CFM-20 .059" Thick 62mm bore size May be used with DP592 Kits, Will alter compression ration #DP H-62-CFM059 $54.34
62mm HEAD GASKET Multi-Layer Steel (MLS) .030" Thick For 62mm bore size For use with with DP674 Kits Will alter compression ration, please check clearances carefully. 1979-82 CB650 Honda #DP H-62-MLS030 $79.95
62mm HEAD GASKET Multi-Layer Steel (MLS) .040" Thick For 62mm bore size For use with with DP674 Kits 1979-82 CB650 Honda #C8827 $79.95
62mm HEAD GASKET Multi-Layer Steel (MLS) .050" Thick For 62mm bore size For use with with DP674 Kits Will alter compression ration. 1979-82 CB650 Honda #DP H-62-MLS050 $79.95
62mm HEAD GASKET Copper, Dead Soft .032" Thick For 62mm bore size May be used with DP674 Kits Will alter compression ration, please check clearances carefully. 1979-82 CB650 Honda #DP H-62-COP032 $69.95
62mm HEAD GASKET Copper, Dead Soft .043" Thick For 62mm bore size May be used with DP674 Kits 1979-82 CB650 Honda #DP H-62-COP043 $69.95

CB500 / 550 / 650 continued... 63mm
63mm HEAD GASKET CFM-20 .043" Thick For 63mm bore size #DP H-63-CFM043 $54.34 *Other thicknesses are available by special order
63mm HEAD GASKET Multi-Layer Steel (MLS) .040" Thick For 63mm bore size DP H-63-MLS040 $79.95 *Other thicknesses are available by special order

CB500 / 550 / 650 continued... 64mm
64mm HEAD GASKET Multi-Layer Steel (MLS) .040" Thick For 64mm bore size DP H-64-MLS040 $79.95 *Other thicknesses are available by special order

CB500 / 550 / 650 continued... BASE GASKETS
.010" THICK #DP B-550-RC010 Base Gasket For stock liners Rubber Coated Steel (Viton®) .010" Thick For use with DP592, 572 and 674 Piston Kits $44.95
.020" THICK #DP B-550-RC020 Base Gasket For stock liners Rubber Coated Steel (Viton®) .020" Thick For use with DP592, 572 and 674 Piston Kits $44.95
CBR600
#C8265 Head Gasket 67mm, MLS, 1991-98 CBR600F2 / F3 $87.73
#C8706-027 Head Gasket 69mm, MLS, .027", .030", 2003-06 CBR600rr $87.73
#C8736 Head Gasket 68.5mm, MLS, .027", 2007-11 CBR600rr $83.52
#C8737 Head Gasket 70mm, MLS, .027", 2007-11 CBR600rr $83.52
NT650 GT HAWK
#C8461 Head & Base Gasket set 82mm, Stainless Head Gaskets (2) Spring Steel .010" Base Gaskets (2) For 1988-91 NT650 Honda $85.06
#C8207 Head Gasket set 82mm, Stainless Head Gaskets (2) For 1988-91 NT650 Honda $54.34
SOHC CB750
CB750 F/K 1969-78 Please visit our SOHC section! - Head Gaskets - Base Gaskets - Vesrah Complete Gasket Sets
DOHC CB750
CB750 F/K/C 1979-82
#C8003 HEAD GASKET 65mm -- CFM-20 -- .043" -- 823cc $54.34
# DP H-835-CFM043 HEAD GASKET 66mm - CFM-20 - .043" - 835cc For use in our DP835/dohc Piston Kit $54.34
#C8004 HEAD GASKET 70mm -- CFM-20 -- .043" -- 890-955cc $54.34
#C8521-RCS BASE GASKET 74mm Rubber Coated Steel (Viton®) .020" Stock bore to 985cc (stock liners) $44.95
#C8454 FIBER BASE GASKET .020" Fiber Stock Bore to 985cc $13.29
#C8451 COPPER BASE GASKET .005" Copper Stock Bore to 985cc *Special order item, please allow 2-4 weeks $35.38
#C8452 COPPER BASE GASKET .010" Copper Stock Bore to 985cc *Special order item, please allow 2-4 weeks $33.68
#C8453 COPPER BASE GASKET .020" Copper Stock Bore to 985cc *Special order item, please allow 2-4 weeks $33.68
DOHC CB900
CB900F 1981-82 (see 1100F also)
#C8005 Head Gasket 68mm -- CFM-20 -- .043" -- 985cc $54.34
#C8006 Head Gasket 72mm -- .043" -- CFM-20 $54.34
#C8224 Head Gasket 72mm -- 1123cc -- Copper -- .043" $65.64
#C8224-050 Head Gasket 72mm -- 1123cc -- Copper -- .050" *Special order item, please allow 2-4 weeks $65.64
#C8521-RCS BASE GASKET 75.8mm/2.99" OD Rubber Coated Steel (Viton®) .020" Stock bore to 985cc (stock liners) $44.95
DOHC CB1100
CB1100F 1983 (see 900F also)
#C8006 Head Gasket 72mm -- CFM-20 -- 1123cc $54.34
#C8224 Head Gasket 72mm -- Copper -- .043" -- 1123cc $65.64
#C8224-050 Head Gasket 72mm -- 1123cc -- Copper -- .050" Available by special order, allow 2-4 weeks $65.64
#C8225 Head Gasket 74mm -- Copper -- .043" -- 1186cc *Special order item, please allow 2-4 weeks $65.64
#C8007 Head Gasket 75mm -- Copper -- .020" -- 1219cc *Special order item, please allow 2-4 weeks $65.64
#C8521-RCS BASE GASKET 75.8mm / 2.99" O.D. Rubber Coated Steel (Viton®) .020" $44.95
#C8451 BASE GASKET 73.6mm O.D. -- 2.90" -- .005" -- Copper *Special order item, please allow 2-4 weeks $39.95
#B0302020 - RCS BASE GASKET (custom) 3.13" / 79.5mm O.D. Rubber Coated Steel (Viton®) .020" $39.95
RC51 / RVT1000r
#C8765 Head Gasket 102.5mm -- MLS -- set of (2) $83.52

more models available! email dynoman

KAWASAKI
GPZ550 1981-85 & KZ550 1980-83
#C8009 Head Gasket 61mm -- CFM-20 -- 615cc $54.34
KZ, GPz750, ZX750 Turbo

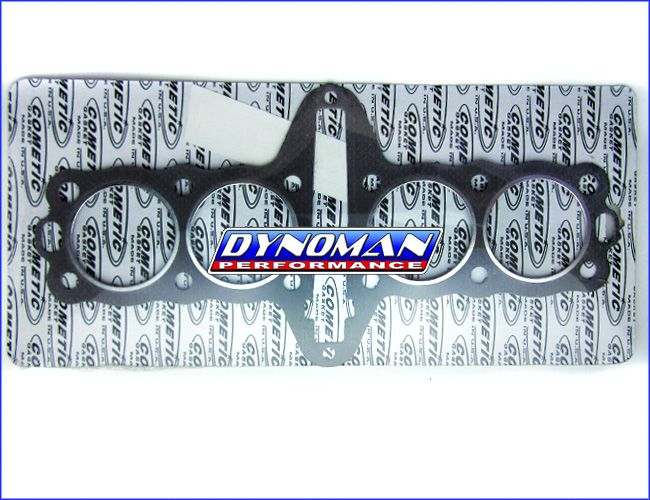

#C8012 Head Gasket 69mm -- CFM-20 -- 810cc -- .043" $54.34

ZX-7 / ZX750 1991-95
#H0540SP4027S HEAD GASKET 72.5mm -- MLS -- .027" $83.52
#H0540SP4030S HEAD GASKET 72.5mm -- MLS -- .030" $83.52
#H0541030S HEAD GASKET 73mm 791cc MLS .030" $83.52
#C8013 Head Gasket 75mm -- CFM-20 Fits 91-95 ZX750r and 86-87 Ninja 1000 $54.34

KZ900 / Z-1 / 1000
#C8152 Head Gasket 70mm -- 1-piece -- Copper -- .043" -- 1015cc $65.64
#C8839-040 Head Gasket 71mm 1045cc MLS .040" $83.52
#C8315 Head Gasket 71mm -- 2-piece -- Copper -- .043" -- 1045cc $62.51
#C8018 Head Gasket 72mm -- 1-piece -- CFM-20 -- 1015 to 1075cc $54.34
#C8840-040 Head Gasket 73mm 1105cc MLS .040" $83.52
#C8244 Head Gasket 74mm -- 2-piece -- Copper -- .043" -- 1135cc $65.64 Available by special order only

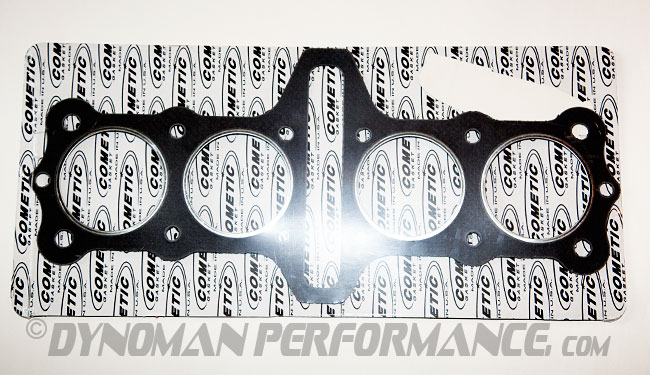

#C8019 Head Gasket 73 to 74mm -- 1-piece -- CFM-20 -- 1075-1135cc $54.34 available by special order only
#C8017 Head Gasket 75mm -- 1-piece -- CFM-20 -- 1075-1170cc -- .043" $51.73

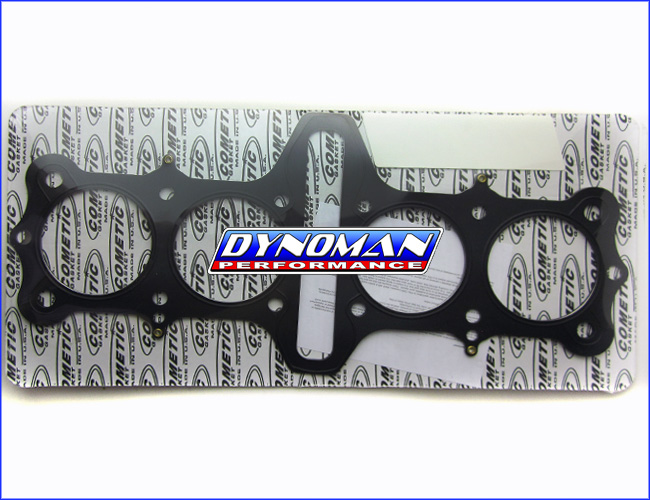

#C8841-040 Head Gasket 76mm 1197cc MLS .040" $83.52
#C8156 Head Gasket 76mm -- Copper -- 1197cc -- .043" $65.64 Available by special order, please allow 1 to 3 weeks
#H0351043C Head Gasket 76mm -- Copper - 1197cc -- .043" -- 2 Piece $65.64 Available by special order, please allow 1 to 3 weeks

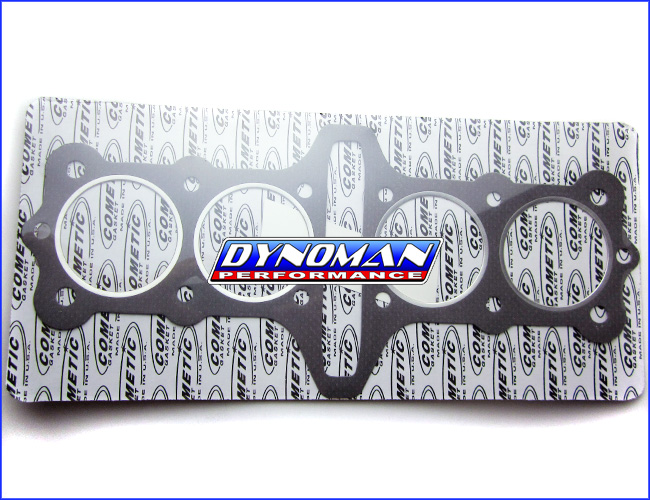

#C8020 Head Gasket 76mm -- 1-piece -- CFM-20 -- 1170-1200cc $54.34
#C8021 Head Gasket 78mm -- 1-piece -- CFM-20 -- 1230-1260cc $54.34
#C8093-RCS BASE GASKET 1000-1200cc Rubber Coated Steel (Viton®) .020" 3.21" ID 81.53mm $39.95
#C8097-RCS BASE GASKET 1230-1260cc Rubber Coated Steel (Viton®) .020" 3.285" ID 83.4mm $44.95
More head and base gasket sizes available by special order... email us with your needs!

ZX-9 1994-97
#C8272 Head Gasket 75mm -- .030" -- Spring Steel $87.73

ZX900 NINJA / GPZ900R ZX1000R 1986-87 ZX750r 1991-95 #C8013 Head Gasket 75mm -- CFM-20 -- .043" -- 972cc $54.34

KZ1000 CSR, P, R GPZ1100 1984-85
#B0269020RC BASE GASKET Rubber Coated Steel (Viton®) .020" $35.38

KZ1000J 1981-83 & GPz1100 81-85
#C8842-040 Head Gasket 71mm -- 1045cc -- MLS -- .040" $83.52
#C8324 Head Gasket 72mm -- CFM-20 -- 1075cc -- 2-piece $51.73
#C8843-040 Head Gasket 73mm -- 1105cc -- MLS -- .040" $83.52
#C8325 Head Gasket 74mm -- CFM-20 -- 1135cc -- 2-piece Available by special order, please allow 2 to 4 weeks $54.34
#C8326 Head Gasket 76mm -- 2 piece -- CFM-20 - 1197cc Available by special order, please allow 2 to 4 weeks $54.34
#C8844-040 Head Gasket 76mm -- 1197cc -- MLS -- .040" $83.52
#C8845-040 Head Gasket 78mm -- 1230-1260cc -- MLS -- .040" $83.52

ZX11, D1, C 1990-2000 GPZ1100 1995-96
#C8273 Head Gasket 78mm .030 S/S 1109cc $79.95

ZRX1200 2001-05 ZZR1200 2001-05 ZR1 2001-05
#C8711 Head Gasket 80mm -- MLS/COT -- .027" -- 1194cc $87.73
#H2488SP1030S Head Gasket 81mm -- MLS -- .030" $87.73

more models available! email dynoman

SUZUKI
GSXR750/1000 2000-04
#C8663 Head Gasket 73mm -- MLS -- .030" $83.52

GS750/850 2-Valve

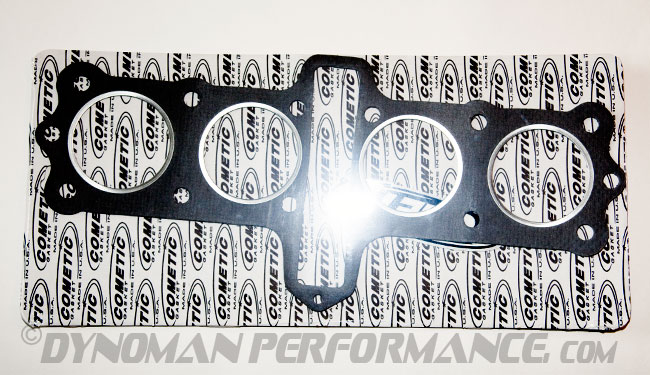

#C8028 Head Gasket 69mm -- CFM-20 -- .043" for 844cc bore $54.34
GS750 4-Valve
#C8549 Base Gasket 2.953" Fiber .020" $13.97

GS1000 1978-81 2-VALVE ENGINES
HEAD GASKETS for GS1000
#C8030 CFM-20 Head Gasket 73.5mm -- CFM-20 -- 997-1100cc $54.34
#C8408 Copper Head Gasket 73.5mm -- Copper -- .043" -- 997-1100cc $65.64
#C8030-78 CFM-20 Head Gasket 78mm -- CFM20 -- .043" -- 1238cc $54.34
#C8030-78C Copper Head Gasket 78mm -- Copper -- .043" -- 1238cc $65.64
BASE GASKETS for GS1000
#C8364 COPPER BASE GASKET 3.110" -- Copper -- .020" -- For use with stock sleeves $35.38
#C8364-RCS BASE GASKET Stock liners to 1100cc -- Rubber Coated Steel (Viton®) .020" 3.110" -- RCS -- .020" -- For use with stock sleeves $39.95
#DP B-GS1238-RCS BASE GASKET For use with DP SLV3010FA Sleeves and DP GS78 (1238cc) Piston Kits 83.7mm ID, Rubber Coated Steel (Viton®) .020" $39.95

GS1100 4-VALVE ENGINES
#C8212AFM Cam Cover Gasket, .047" Fiber, (Early model, 20 bolt) $19.87
HEAD GASKETS FOR GS1100
#C8163-MLS Head Gasket 72mm -- MLS -- .040" -- 1075cc (stock) $87.73
#C8031 Head Gasket 75mm -- CFM-20 -- .043" -- 1133-1168cc $54.34
#C8728-045 Head Gasket 75mm -- MLS -- .045" -- 1100-1168cc 11mm dowel pins $87.73
#C8728-060 Head Gasket 75mm -- MLS -- .060" -- 1100-1168cc Available by special order. $134.00
#DP H0142043C Head Gasket 75mm -- Copper -- .043" -- 1100-1168cc 11mm Dowel Pins $65.64
#C8729-045 Head Gasket 76mm -- MLS -- .045" -- 1167-1198cc 11mm dowel pins $87.73
#C8032 Head Gasket 76mm -- CFM-20 -- .043" -- 1168-1198cc $51.73
#C8166-CFM Head Gasket 78mm -- CFM-20 -- .043" -- to 1260cc $54.34
#C8166 Copper Head Gasket 78mm -- Copper -- .043" -- to 1260cc $65.64
#C8166-MLS Head Gasket 78mm -- MLS -- .045" -- to 1260cc $87.73
#C8033 Head Gasket 79mm -- CFM-20 -- .043" -- 1228-1290cc $51.73
#C8730-045 Head Gasket 79mm -- MLS -- .040" -- 1228-1290cc 11mm dowel pins $87.73
BASE GASKETS FOR GS1100
#C8112 COPPER BASE GASKET 1100 to 1168cc -- .020" -- 3.130" Bore Copper $39.95
#C8112-043 COPPER BASE GASKET 1100 to 1168cc -- .043" -- 3.130" Bore Copper $39.95

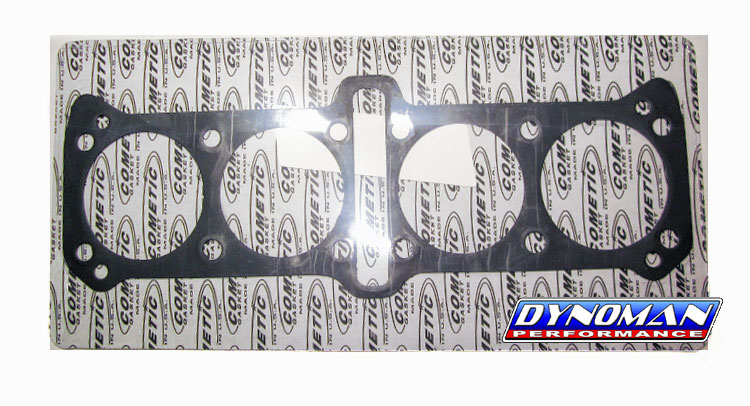

#C8113-RCS BASE GASKET 1198 to 1260cc Rubber Coated Steel (Viton®) .020" 3.290 / 83.6mm ID Available by special order. $39.95
#C8115 COPPER BASE GASKET 1198-1260cc -- Copper -- .010" -- 3.290 ID Copper $39.95 Available by special order.
#C8116 COPPER BASE GASKET 1198 to 1260cc -- 3.290" ID -- .020" Copper $39.95

YAMAHA

YZF1000 / FZR1000
#C8283 Head Gasket 77mm -- 1040cc -- Spring Steel MLS 1987-95 FZR and 97 YZF $74.95
#C8388 Head Gasket 78mm 1070cc Spring Steel MLS 1987-95 FZR and 97 YZF For use with DP1070/fzr Piston Kits $74.95
#C8382 Base Gasket 3.260" Bore for 1070cc Rubber Coated Steel (RCS) For use with DP1070/fzr Piston Kits $39.95
YZF-R1 / FZ1 1998-2003
#C8562 Head Gasket 74mm to 75mm MLS Spring Steel .030" 1998-2003 YZF, R-1, FZ1 $74.95 *Please allow 1 to 2 weeks production time on this special order gasket.
XS1100
#C8046 HEAD GASKET 76mm, 1148 - 1179cc, CFM-20 $54.34 *Please allow 1 to 2 weeks production time on this special order gasket.
FJ600 / FZ600
#C8040 HEAD GASKET 60mm ID CFM-20 .043" $59.95 *Please allow 1 to 2 weeks production time on this special order gasket.
FZR600
#C8282 HEAD GASKET 60.5mm MLS .040" $89.95

more models available! email dynoman

ABOUT MULTI-LAYER STEEL HEAD GASKETS
Developed and manufactured in the USA.
MLS stands for Multi-Layer Steel. MLS head gaskets are comprised of three layers of stainless steel. The outer layers are an embossed Viton® coated stainless steel providing a superior seal with excellent rebound characteristics and are corrosive resistant. MLS head gaskets reduce bore distortion and withstand extreme cylinder pressures.

DP Multi-Layer Steel (MLS) head gaskets go on dry because they are coated with a sealant. Each MLS head gasket is coated with a .001" thick Viton rubber that is bonded to the outer stainless steel layers. Adding an additional sealer can hinder the performance of an MLS head gasket.

A surface finish of 50 RA (roughness average) or finer, is recommended for a proper gasket seal. Anything rougher may conflict with the gasket design.

When using MLS head gaskets always refer to the manufacturer (OE) of the fastener to determine accurate torque values.

•Provide maximum sealing performance for today's high output engines and require no sealants
•Ideal for aluminum heads to aluminum blocks and aluminum heads to cast iron blocks withstanding the shearing force created by the two materials.
•No need to re-torque, the embossing design of the MLS gasket promotes an even clamp load across the sealing surface allowing for measurable reduced bore distortion

DP MLS Gaskets are comprised of multiple layers of stainless steel due to it's increased strength, ability to rebound and resistance to corrosion.

The outer layers of the gaskets are embossed and coated on both sides with Viton - a flouroelastomer rubber based material that is heat resistant to 250°C /482ºF. Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes.

The center or shim layer is uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements.

ABOUT RUBBER COATED STEEL BASE GASKETS
Rubber coated single layer steel base gaskets are Viton® rubber coated with a steel core and in some instances embossed. Quite simply the best base gasket made for most applications!

ABOUT CFM-20 HEAD GASKETS

Cometic CFM-20 head gaskets are the perfect replacement gaskets for your engine. These gaskets are produced from a high quality perforated steel core that has an elastomer surface. This construction allows heat to be drawn evenly across the surface, providing maximum sealing characteristics.

CFM-20 gaskets are fiber laminate over a tanged and galvanized steel core. An asbestos-free soft material compound containing aramid fibers, inorganic fillers, and high-grade binder elastomers is applied to both sides of the core.
